DRCP24-86PA
ActiveTE Connectivity AMP Connectors

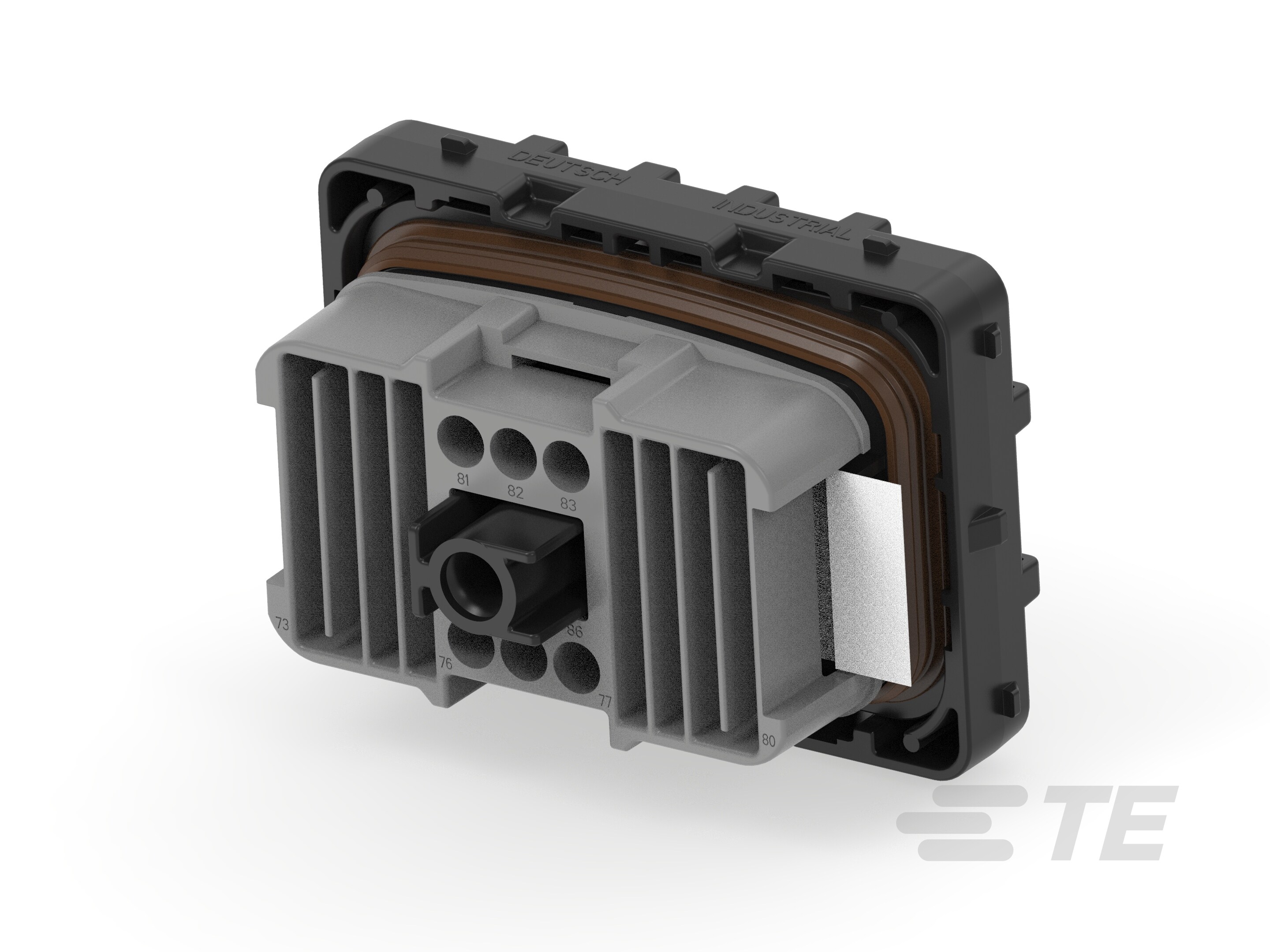

REC, 86P, BLK, 12/20, A
DRCP24-86PA
ActiveTE Connectivity AMP Connectors
REC, 86P, BLK, 12/20, A
Description
General part information
DRCP24-86PA
86 Position Housing, Housing for Male Terminals, Wire-to-Wire, 5.69 mm / 8 mm [.224 in / .315 in] Centerline, Sealable, Black, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | DRCP24-86PA |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Terminal Position Lock (TPA) |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 86 |
| Number of Rows | 10 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.224 in |
| Row Spacing | 0.161 in |
