Specification	EZ-400-FM-75

Body Finish	Nickel
Cable Group	LMR-400-75, LMR-400
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	F Type
Connector Type	Male Pin, Plug
Contact Termination	Push On, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	2.5 GHz, 2 GHz
Housing Color	Silver
Impedance	75 Ohm
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C, 85 °C
Operating Temperature (Min)	-65 °C, -40 °C
Shield Termination	Crimp

EZ-400 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Body Finish	Mating Cycles	Body Material	Center Contact Plating	Dielectric Material	Contact Termination	Connector Type	Shield Termination	Impedance	Center Contact Material	Fastening Type	Cable Group	Number of Ports	Mounting Type	Frequency - Max	Housing Color	Connector Style	Mounting Feature	Insertion Loss

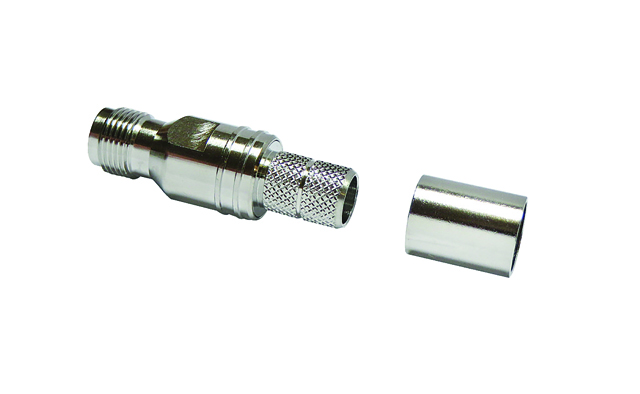

McGill Microwave Systems EZ-400-TF-PL-X	125 °C	-40 °C	2.5 kV	White Bronze	500 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Female Socket Jack	Crimp	50 Ohm	Beryllium Copper	Threaded	LMR-400	1	Free Hanging (In-Line)	6000 MHz	Silver	TNC
McGill Microwave Systems EZ-400-TF-X	125 °C	-55 °C	750 VDC	White Bronze	500 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Female Socket Jack	Crimp	50 Ohm	Phosphor Bronze	Threaded	LMR-400	1	Free Hanging (In-Line)	6000 MHz	Silver	TNC
McGill Microwave Systems EZ-400-NF-BH-X	125 °C	-40 °C	2.5 kV	White Bronze	500 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Female Socket Jack	Crimp	50 Ohm	Beryllium Copper	Threaded	LMR-400	1	Panel Mount	6000 MHz	Silver	N Type	Bulkhead Front Side Nut

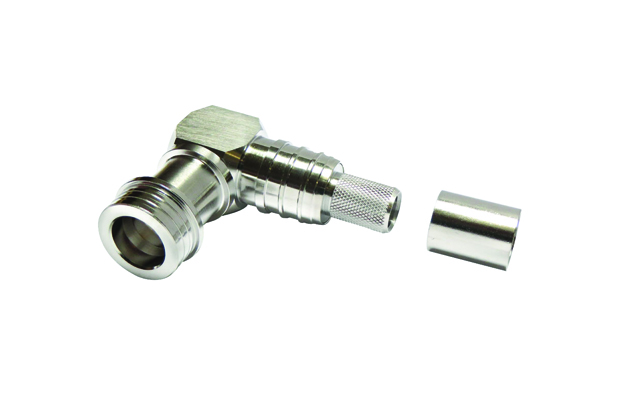

McGill Microwave Systems EZ-400-QNM-RA-X	125 °C	-40 °C		Tin	100 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Male Pin Plug	Crimp	50 Ohm	Beryllium Copper	Snap-On	LMR-400	1	Free Hanging (In-Line) Right Angle	6000 MHz	Silver	QN
McGill Microwave Systems EZ-400-4310M-X	125 °C	-40 °C		Tin	100 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Male Pin Plug	Crimp	50 Ohm	Beryllium Copper	Threaded	LMR-400	1	Free Hanging (In-Line)	6000 MHz	Silver	4.3/10
McGill Microwave Systems EZ-400-TM-PL-X	125 °C	-40 °C	2.5 kV	White Bronze	500 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Male Pin Plug	Crimp	50 Ohm	Beryllium Copper	Threaded	LMR-400	1	Free Hanging (In-Line)	6000 MHz	Silver	TNC
McGill Microwave Systems EZ-400-NMH-75-X	125 °C	-40 °C		White Bronze	500 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Male Pin Plug	Crimp	75 Ohm	Beryllium Copper	Threaded	LMR-400-75	1	Free Hanging (In-Line)	3 GHz	Silver	N Type
McGill Microwave Systems EZ-400-FMH-75	85 °C	-40 °C	1000 V	Nickel		Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Male Pin Plug	Crimp	75 Ohm	Brass	Threaded	LMR-400-75	1	Free Hanging (In-Line)	2 GHz	Silver	F Type

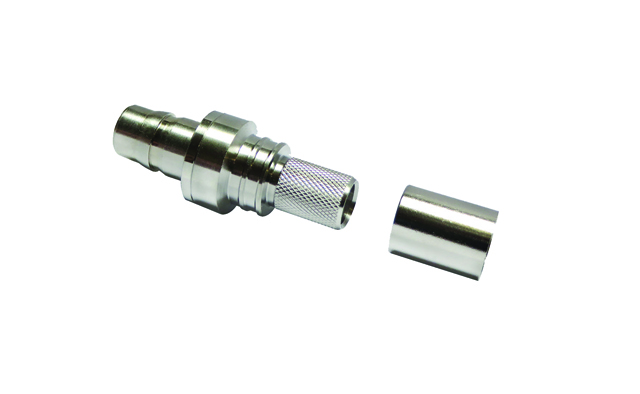

McGill Microwave Systems EZ-400-QNF-X	125 °C	-40 °C		Tin	100 cycles	Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Female Socket Jack	Crimp	50 Ohm	Beryllium Copper	Snap-On	LMR-400	1	Free Hanging (In-Line)	6000 MHz	Silver	QN
McGill Microwave Systems EZ-400-TM-RA-X	125 °C	-55 °C		White Bronze		Brass	Gold	Polytetrafluoroethylene (PTFE)	Push On	Male Pin Plug	Crimp	50 Ohm	Beryllium Copper	Threaded	LMR-400	1	Free Hanging (In-Line) Right Angle	6000 MHz	Silver	TNC		0.1 dB
