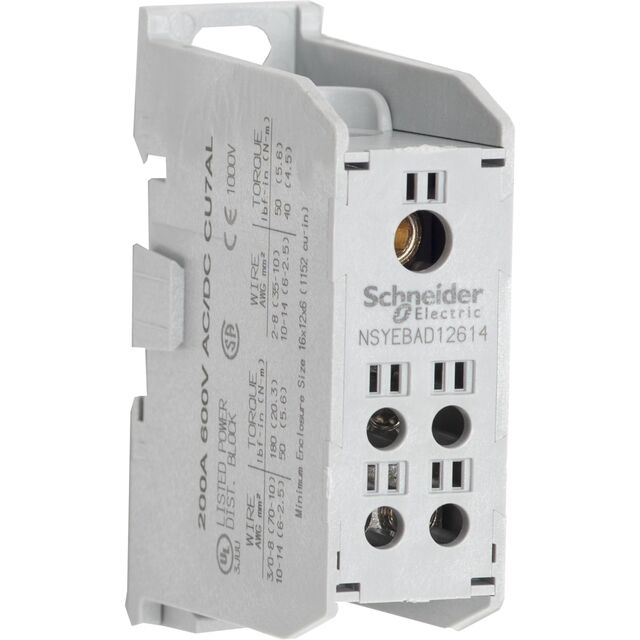

NSYEBAP12614
ObsoleteSCHNEIDER ELECTRIC
ENCLOSED POWER BLOCK 600V 200A
NSYEBAP12614
ObsoleteSCHNEIDER ELECTRIC
ENCLOSED POWER BLOCK 600V 200A
Description
General part information
NSYEBAP12614
1 Pole Power Distribution Block 200 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYEBAP12614 |
|---|---|
| Current Rating | 200 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Size | 3/0, 14 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 4 |
| Load Side Wire/Stud Size (AWG) (Max) | 14 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 2 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
