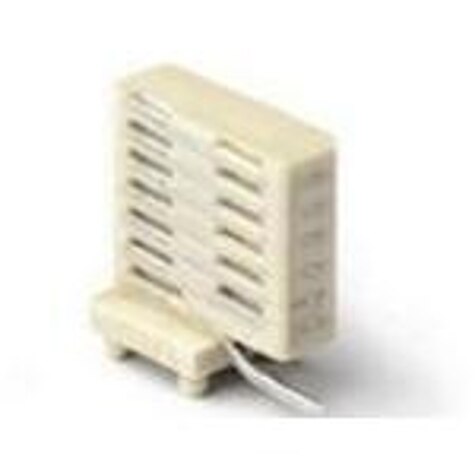

W3118A
ActivePulse Electronics
ANTENNAS HELICAL 850M RX DIVERSITY
W3118A
ActivePulse Electronics
ANTENNAS HELICAL 850M RX DIVERSITY
Description
General part information
W3118A
ANTENNAS HELICAL 850M RX DIVERSITY
Technical Specifications
Parameters and characteristics for this part
| Specification | W3118A |
|---|---|
| Antenna Type | Helical |
| Applications | GSM |
| Frequency (Center/Band) | 850 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 894 MHz |
| Frequency Range (Min) | 869 MHz |
| Gain | 0 dBi |
| Height (Max) | 0.315 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -9 dB |
| RF Family/Standard | Cellular |
| Termination | Solder |
