C09111H0070012
ActiveAmphenol Aerospace Operations
CIRCULAR CONNECTOR, 7 CONTACT(S)
C09111H0070012
ActiveAmphenol Aerospace Operations
CIRCULAR CONNECTOR, 7 CONTACT(S)
Description
General part information
C09111H0070012

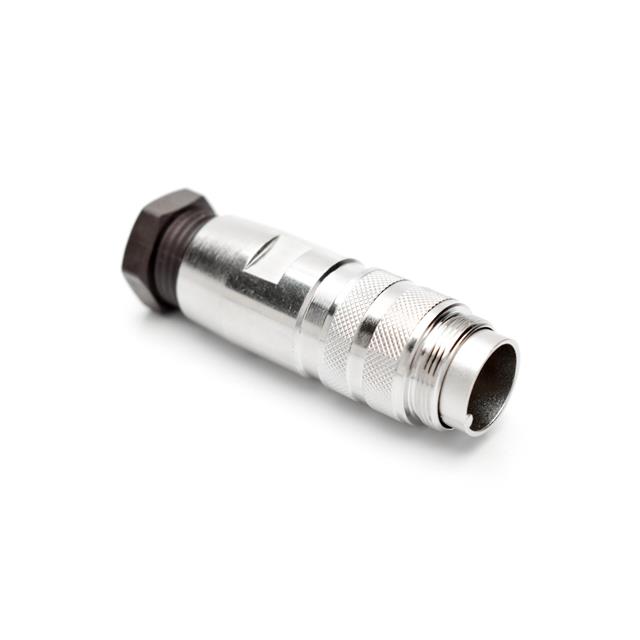

7 Position Circular Connector Plug Housing Free Hanging (In-Line) Strain Relief
Technical Specifications
Parameters and characteristics for this part
| Specification | C09111H0070012 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Strain Relief |
| Housing Color | Silver |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP69K, IP65, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 7 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16-7 |
| Shielding | Shielded |
| Type | For Male Pins |
