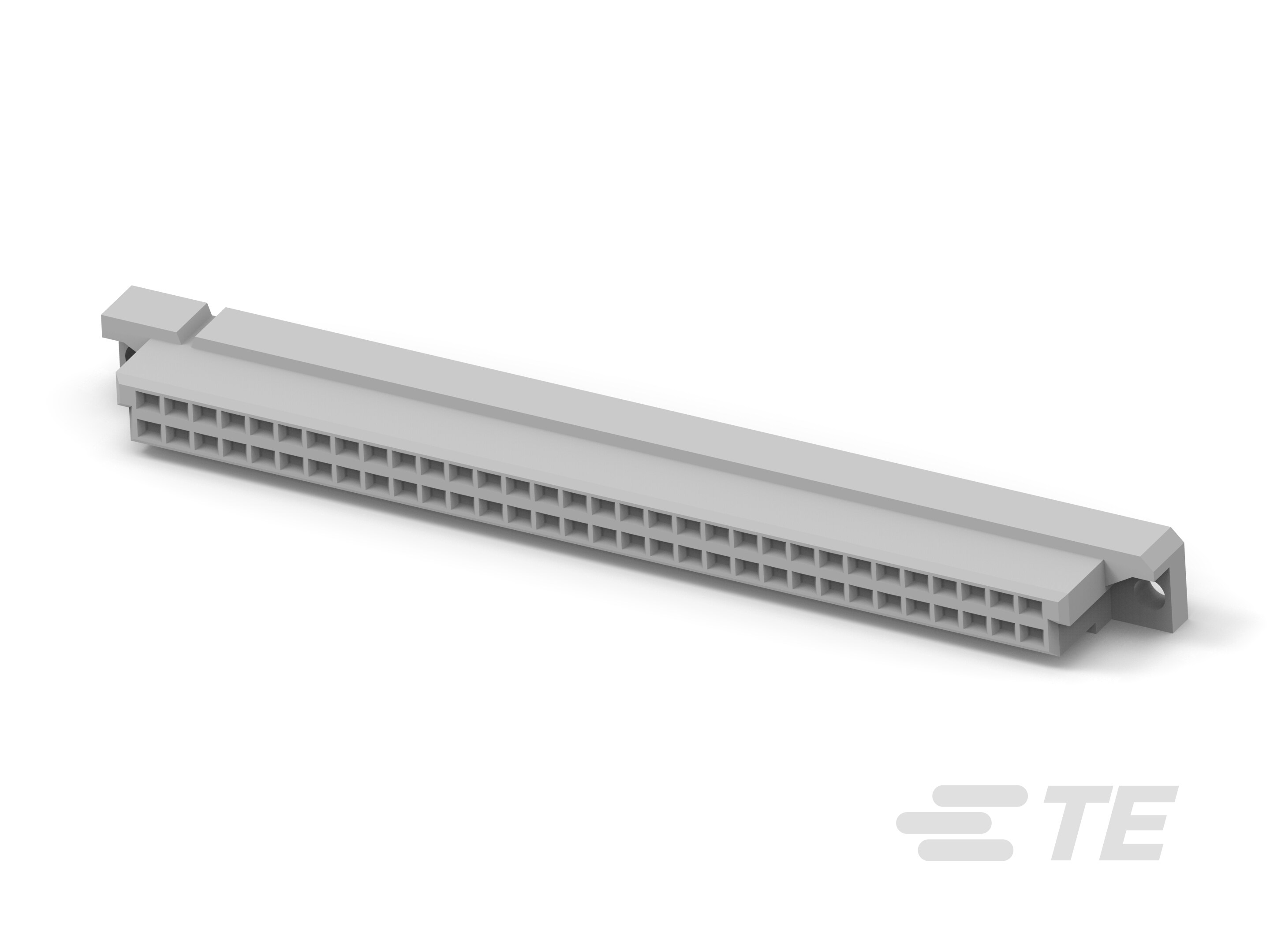

Specification	650860-5

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	2
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Pitch	0.1 in
Style	B
Termination	Solder

Eurocard Type B Series

Part	Connector Type	Features	Pitch	Number of Positions	Contact Finish	Number of Rows	Number of Positions Loaded	Style	Mounting Type	Termination	Level, Class	Material Flammability Rating	Material - Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Position Types
TE Connectivity AMP Connectors 650913-5	Male Pins Plug	Board Lock	0.1 in	96	Gold	3	All	C	Right Angle Through Hole	Solder	2	UL94 V-0	Glass Filled Polyester	125 °C	-55 °C
TE Connectivity AMP Connectors 5650860-5	Female Sockets Receptacle		0.1 in	64	Gold	2	All	B	Through Hole	Solder	2	UL94 V-0	Glass Filled Polymer Thermoplastic	125 °C	-55 °C
TE Connectivity AMP Connectors 650992-5	Female Sockets Receptacle		0.1 in	128	Gold	3	All	C	Through Hole	Press-Fit	2					Ground
TE Connectivity AMP Connectors 5536461-5	Female Sockets Receptacle	Board Lock	0.1 in	32	Gold	2	All	B/2 (1/2 B)	Through Hole	Solder	2
TE Connectivity AMP Connectors 6-1393644-6	Male Pins Plug		0.1 in	64	Gold Gold-Palladium	2	All	B	Right Angle Through Hole	Solder	2
TE Connectivity AMP Connectors 148103-1	Male Pins Plug		0.1 in	32	Gold	2	All	B/2 (1/2 B)	Right Angle Through Hole	Solder	2		Glass Filled Polymer Thermoplastic	125 °C	-55 °C
TE Connectivity AMP Connectors 650861-5	Female Sockets Receptacle		0.1 in	64	Gold	2	All	B	Through Hole	Solder	2
TE Connectivity AMP Connectors 536461-5	Female Sockets Receptacle	Board Lock	0.1 in	32		2	All	B/2 (1/2 B)	Through Hole	Solder	2		Glass Filled Polyester	125 °C	-55 °C
TE Connectivity AMP Connectors 5650858-5	Female Sockets Receptacle		0.1 in	32	Gold	2	All	B/2 (1/2 B)	Through Hole	Solder	2
TE Connectivity AMP Connectors 536052-5	Male Pins Plug		0.1 in	64	Gold	2	All	B	Right Angle Through Hole	Solder	2
