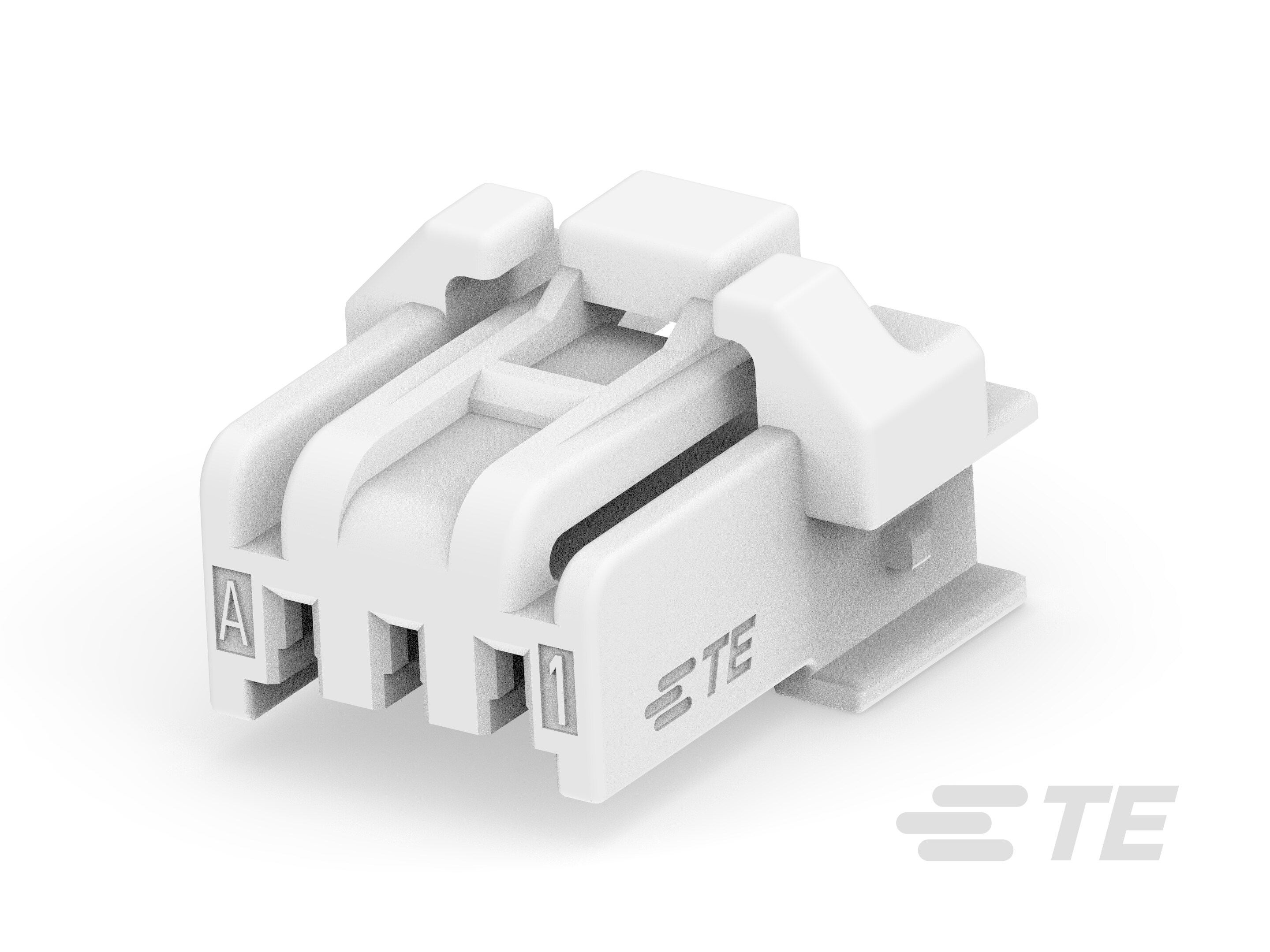

Specification	2382946-3

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.059 in

GRACE INERTIA 1.5 Series

...

Part	Insulation Material	Contact Material	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Shrouding	Contact Finish - Mating	Contact Finish - Post	Contact Type	Style	Number of Positions	Fastening Type	Material Flammability Rating	Termination	Contact Shape	Insulation Height	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Color	Connector Type	Number of Rows	Features	Pitch - Mating	Current Rating	Current Rating	Number of Positions Loaded	Mounting Type	Color	Contact Termination	Pitch	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors 1-2360545-0	Nylon 4T Polyamide (PA4T)	Brass	50 V	DC	39.4 µin	Shrouded - 4 Wall	Tin	Tin	Outer Shroud Contact	Board	10	Push-Pull	UL94 V-0	Solder	Square	0.193 in	-40 °C	105 °C	Natural	Header	1	Solder Retention	0.059 in	0 A	Varies by Wire Gauge	All	Right Angle Surface Mount
TE Connectivity AMP Connectors 2-2360545-2	Nylon 4T Polyamide (PA4T)	Brass	50 V	DC	39.4 µin	Shrouded - 4 Wall	Tin	Tin	Outer Shroud Contact	Board	2	Push-Pull	UL94 V-0	Solder	Square	0.193 in	-40 °C	105 °C	Black	Header	1	Solder Retention	0.059 in	0 A	Varies by Wire Gauge	All	Right Angle Surface Mount
TE Connectivity AMP Connectors 2-2382946-2	Nylon Polyamide (PA)								Female Socket		2	Latch Lock					-40 °C	105 °C		Plug	1						Free Hanging (In-Line)	Black	Crimp	0.059 in
TE Connectivity AMP Connectors 2-2383410-7											7																				Terminal Position Assurance (TPA)	SGI Series
TE Connectivity AMP Connectors 1-2382946-0	Nylon Polyamide (PA)								Female Socket		10	Latch Lock					-40 °C	105 °C		Plug	1						Free Hanging (In-Line)	Natural	Crimp	0.059 in
TE Connectivity AMP Connectors 2-2382946-3	Nylon Polyamide (PA)								Female Socket		3	Latch Lock					-40 °C	105 °C		Plug	1						Free Hanging (In-Line)	Black	Crimp	0.059 in
TE Connectivity AMP Connectors 2-2382946-8	Nylon Polyamide (PA)								Female Socket		8	Latch Lock					-40 °C	105 °C		Plug	1						Free Hanging (In-Line)	Black	Crimp	0.059 in
TE Connectivity AMP Connectors 3-2360547-1	Nylon 4T Polyamide (PA4T)	Brass	50 V		39.4 µin	Shrouded - 4 Wall	Tin		Male Pin	Board Cable/Wire	11	Push-Pull	UL94 V-0	Solder	Rectangular	0.232 in	-40 °C	105 °C	Black	Header	1	Solder Retention	0.059 in	2 A		All	Surface Mount
TE Connectivity AMP Connectors 2382946-2	Nylon Polyamide (PA)								Female Socket		2	Latch Lock					-40 °C	105 °C		Plug	1						Free Hanging (In-Line)	Natural	Crimp	0.059 in
TE Connectivity AMP Connectors 1-2360547-1	Nylon 4T Polyamide (PA4T)	Brass	50 V		39.4 µin	Shrouded - 4 Wall	Tin		Male Pin	Board Cable/Wire	11	Push-Pull	UL94 V-0	Solder	Rectangular	0.232 in	-40 °C	105 °C	Natural	Header	1	Solder Retention	0.059 in	2 A		All	Surface Mount
