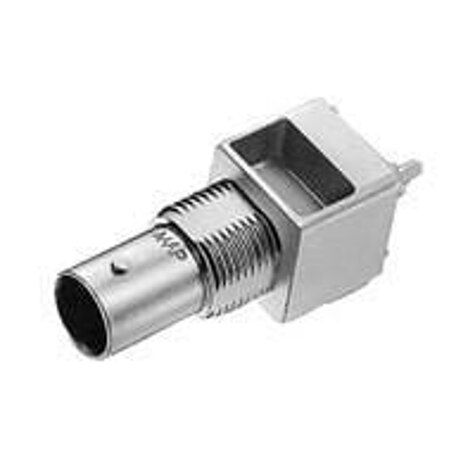

Specification	5227671-1

Center Contact Material	Phosphor Bronze
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole
Number of Ports	1
Shield Termination	Solder

BNC Series

Part	Cable Group	Housing Color	Frequency - Max	Number of Ports	Center Contact Material	Shield Termination	Mounting Type	Connector Type	Contact Termination	Connector Style	Impedance	Fastening Type	Dielectric Material	Voltage Rating	Includes	Includes Total Count	Body Finish	Mating Cycles	Insertion Loss	Center Contact Plating	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Cable Group Current Rating
TE Connectivity AMP Connectors 5225395-8	187 RG-179	Silver	4 GHz	1	Brass	Crimp	Free Hanging (In-Line)	Male Pin Plug	Crimp	BNC	50 Ohm	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500 V	Connector Contact Ferrule Sleeve	4 pcs	Nickel	500 cycles	0.2 dB	Gold	Brass	-55 °C	85 °C
TE Connectivity AMP Connectors 5225395-2	59A 59B 62 62A 62B RG-59	Silver	4 GHz	1	Brass	Crimp	Free Hanging (In-Line)	Male Pin Plug	Crimp	BNC	50 Ohm	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500 V	Connector Contact Ferrule	3 pcs	Nickel	500 cycles	0.2 dB	Gold	Brass	-55 °C	85 °C
TE Connectivity AMP Connectors 5225395-6	142A 142B RG-142	Silver	4 GHz	1	Brass	Crimp	Free Hanging (In-Line)	Male Pin Plug	Crimp	BNC	50 Ohm	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500 V	Connector Contact Ferrule	3 pcs	Nickel	500 cycles	0.2 dB	Gold	Brass	-55 °C	85 °C
TE Connectivity AMP Connectors 5225395-7	188 RG-174	Silver	4 GHz	1	Brass	Crimp	Free Hanging (In-Line)	Male Pin Plug	Crimp	BNC	50 Ohm	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500 V	Connector Contact Ferrule Sleeve	4 pcs	Nickel	500 cycles	0.2 dB	Gold	Brass	-55 °C	85 °C	188
TE Connectivity AMP Connectors 4-5225395-1	Belden 88241 RG-62A	Silver	4 GHz	1	Brass	Crimp	Free Hanging (In-Line)	Male Pin Plug	Crimp	BNC	50 Ohm	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500 V	Connector Contact Ferrule	3 pcs	Nickel	500 cycles	0.2 dB	Gold	Brass	-55 °C	85 °C
TE Connectivity AMP Connectors 5225395-5	RG-141	Silver	4 GHz	1	Brass	Crimp	Free Hanging (In-Line)	Male Pin Plug	Crimp	BNC	50 Ohm	Bayonet Lock	Polytetrafluoroethylene (PTFE)	500 V	Connector Contact Ferrule	3 pcs	Nickel	500 cycles	0.2 dB	Gold	Brass	-55 °C	85 °C	141 A
