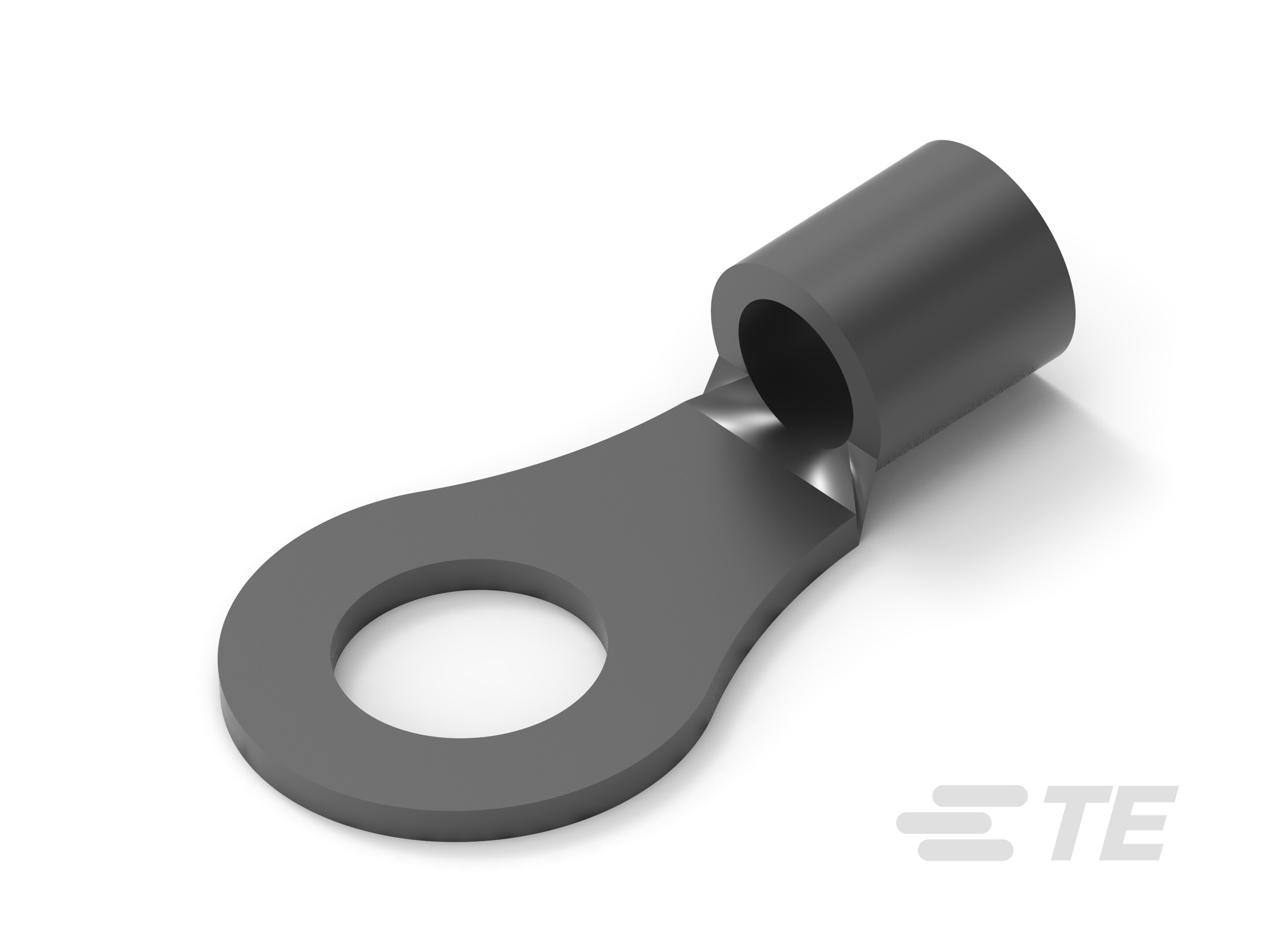

TERMINAL,SOLIS R 8 5/16-33462

33462

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL, M8, 5/16", 8 AWG, 10.5 MM², SOLISTRAND SERIES

Find alt
TERMINAL,SOLIS R 8 5/16-33462

33462

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL, M8, 5/16", 8 AWG, 10.5 MM², SOLISTRAND SERIES

Find alt

Description

General part information

33462

Closed Ring Tongue Terminal, 8 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification33462
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Brazed Seam
InsulationNon-Insulated
Length - Overall1.168 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.3125 in
Stud/Tab Size16 Stud, 5 Stud
Stud/Tab Size (Type)Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.048 in
Width - Outer Edges0.594 in
Wire Gauge8 AWG
