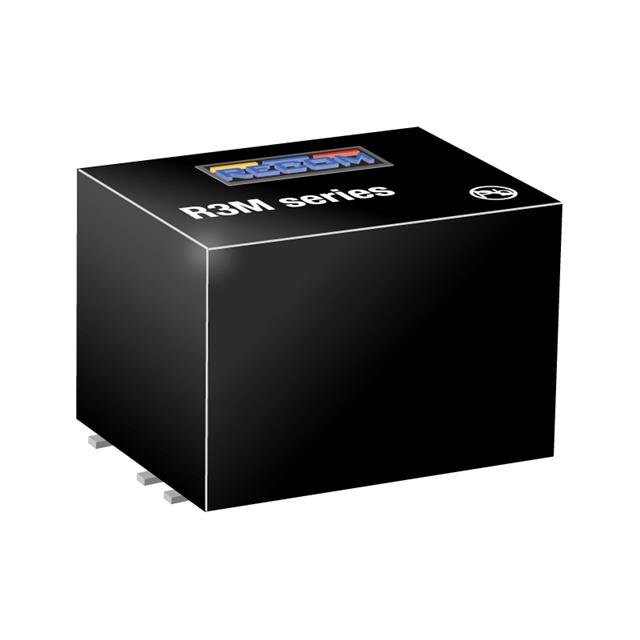

R3M-1209S/SMD
ActiveRecom Power
3W DC/DC-CONVERTER 'ECONOLINE' S
R3M-1209S/SMD
ActiveRecom Power
3W DC/DC-CONVERTER 'ECONOLINE' S
Description
General part information
R3M-1209S/SMD
Isolated Module DC DC Converter 1 Output 9V 333mA 4.5V - 18V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | R3M-1209S/SMD |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 333 mA |
| Efficiency | 81 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 7-SMD Module |
| Power (Watts) | 2.997 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 0.52 in |
| Size / Dimension Width | 0.36 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 18 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 9 V |
