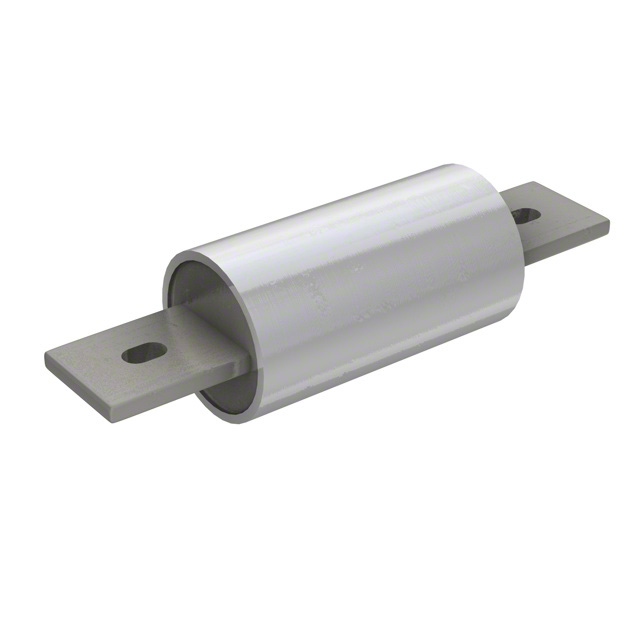

LPJ-110SPI
ActiveEaton - Electronics Division
FUSE CRTRDGE 110A 600VAC/300VDC
LPJ-110SPI
ActiveEaton - Electronics Division
FUSE CRTRDGE 110A 600VAC/300VDC
Description
General part information
LPJ-110SPI
110A 600 VAC 300 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LPJ-110SPI |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity (AC) | 300 kA |
| Breaking Capacity (DC) | 100 kA |
| Class | J |
| Current Rating | 110 A |
| Features | Indicating |
| Fuse Type | Cartridge |
| Mounting Type | Bolt Mount |
| Package / Case | Alarm Indicator, Cylindrical, Blade Terminal |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 1.5 in |
| Size / Dimension Length | 3 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 V |
