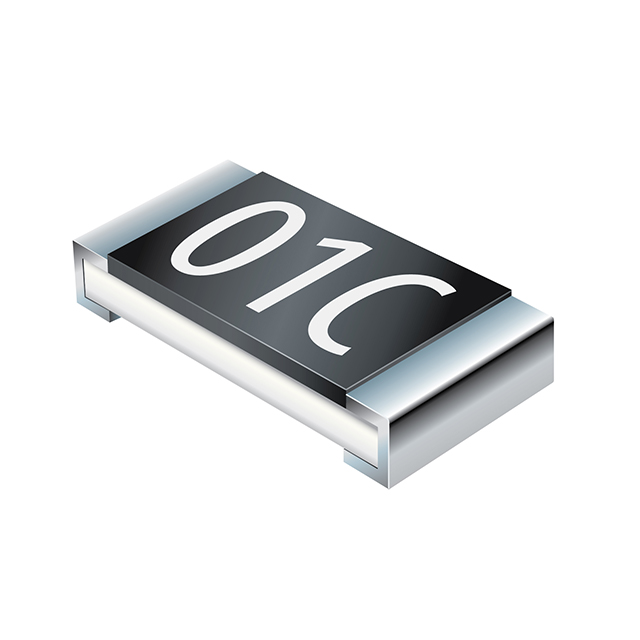

Specification	CRT0603-FZ-2002EST

Composition	Thin Film
Features	Current Sense
Height - Seated (Max)	0.022 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	0603 (1608 Metric)
Package Name	0603
Power (Watts)	100 mW
Power (Watts) Options	1/10W
Resistance	20 kOhm
Size / Dimension Length	0.063 in
Size / Dimension Width	0.031 in
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

CRT0603 Series

...

Part	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Resistance	Temperature Coefficient	Package Name	Composition	Tolerance	Package / Case	Number of Terminations	Power (Watts)	Power (Watts) Options	Features
Bourns Inc. CRT0603-BY-8201ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	8.2 kOhm	25 ppm/°C	0603	Thin Film	0.1 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-BY-1051ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	1.05 kOhm	25 ppm/°C	0603	Thin Film	0.1 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-BY-5111ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	5.11 kOhm	25 ppm/°C	0603	Thin Film	0.1 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-FZ-10R0ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	10 Ohms	50 ppm/°C	0603	Thin Film	1 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-PW-2001ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	2 kOhm	10 ppm/°C	0603	Thin Film	0.01 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-DY-1500ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	150 Ohm	25 ppm/°C	0603	Thin Film	0.5 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-BY-1502ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	15 kOhm	25 ppm/°C	0603	Thin Film	0.1 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-PW-1001ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	1 kOhm	10 ppm/°C	0603	Thin Film	0.01 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-BW-6341ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	6.34 kOhm	10 ppm/°C	0603	Thin Film	0.1 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
Bourns Inc. CRT0603-BY-6982ELF	0.024 in	0.031 in	0.061 in	155 °C	-55 °C	69.8 kOhm	25 ppm/°C	0603	Thin Film	0.1 %	0603 (1608 Metric)	2	100 mW	1/10W	Current Sense
