82740 877U1000

Active

Belden Inc.

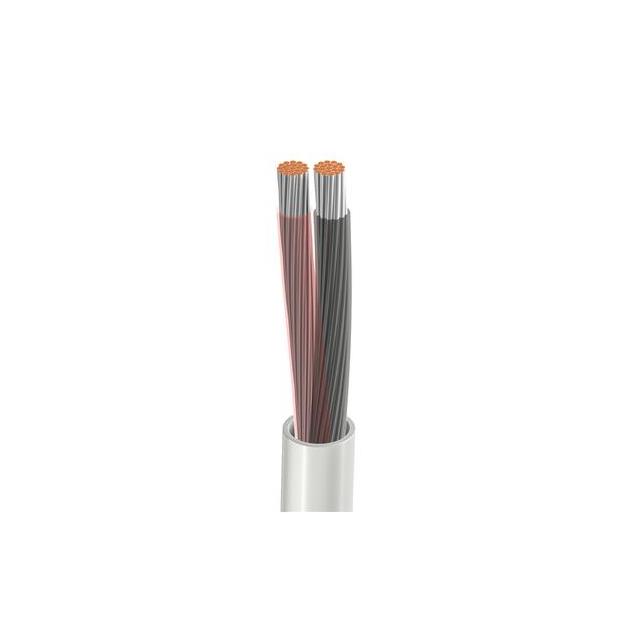

CABLE 2COND 18AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	82740 877U1000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	3.63 mm
Jacket (Insulation) Diameter [diameter]	0.143 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.368 mm
Jacket (Insulation) Thickness	0.0145 in
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Voltage	Conductor Insulation	Cable Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Wire Gauge	Number of Conductors
Belden Inc. 82740 877U1000	300 V	Fluorinated Ethylene-Propylene (FEP)	Multi-Conductor	Copper Tinned	19	30 AWG	Natural	3.63 mm	0.143 in	Audio Control Instrumentation	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	-20 C	60 °C	0.368 mm	0.0145 in	1000 ft	304.8 m	18 AWG	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.40

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Natural 18 AWG 1000.0' (304.8m)
