Q-0200Z00011.5M

Active

Amphenol Custom Cable

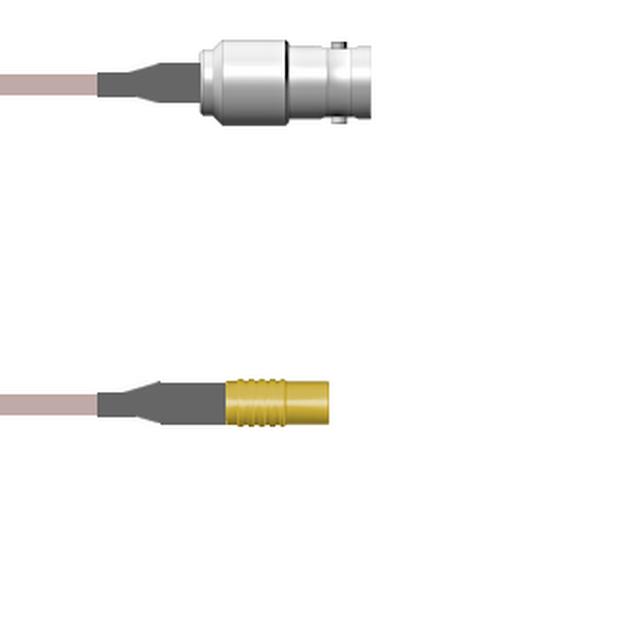

CBL ASSY BNC-MCX JACK-JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0200Z00011.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0200Z00011.5M	Q-0200Z0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	MCX Jack	MCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	59.1 in	3 - 118.1 in
Length	4.9 ft	3.3 - 9.8 ft
Length	1.5 m	1 - 1200 m
Length	-	9.843 "
Length	-	250 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MCX	BNC to MCX

Q-0200Z0 Series

CBL ASSY BNC-MCX JACK-JACK 7'

Part	Length	Length	Length	1st Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Contact Gender	1st Connector Mounting Type	Cable Type	2nd Connector	1st Connector	Style	Features	Overall Impedance	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-0200Z0001084i	84 in	2.1 m	7 ft	Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z0001060i	5 '	1.5 m	5 ft	Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z00011.5M	59.1 in	1.5 m	4.9 ft	Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z00012.5M	98.4 in	2.5 m	8.2 '	Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z00010.5M	19.69 "	50 cm		Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z0001009i	9 "	228.6 mm		Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z0001.75M	29.53 "	750 mm		Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z0001108i	108 in	2.7 m	9 ft	Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-0200Z0001.25M				Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper	9.843 "	250 mm
Amphenol Custom Cable Q-0200Z0001048i	48 in	1200 mm	4 ft	Female	Free Hanging (In-Line)	4 GHz	Female	Free Hanging (In-Line)	RG-178	MCX Jack	BNC Jack	BNC to MCX	Shielded	50 Ohms	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 68.70
		25	$ 64.01
		50	$ 59.32
		100	$ 55.30
		250	$ 51.95

Description

General part information

Q-0200Z0 Series

Cable Assembly Coaxial BNC to MCX RG-178 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
