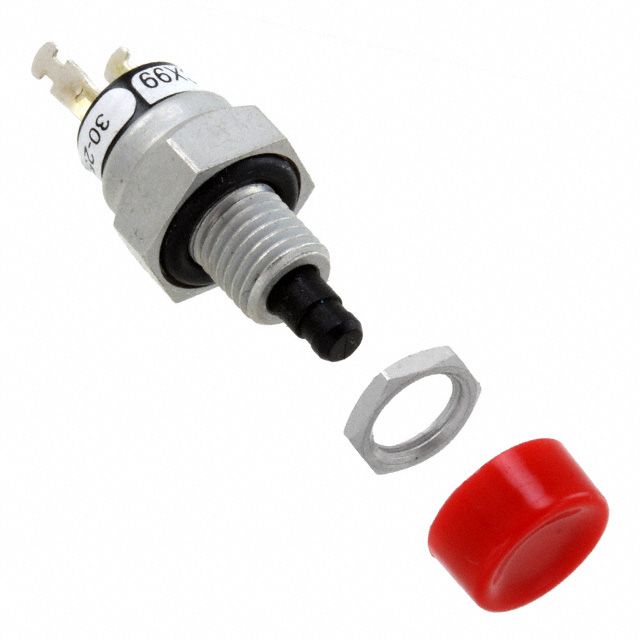

30-252 RED
ActiveGrayhill Inc.
SWITCH PUSH BUTTON N.C. SPST ROUND BUTTON 1A 220VAC MOMENTARY PANEL MOUNT SOLDER LUG
Deep-Dive with AI
Search across all available documentation for this part.
30-252 RED
ActiveGrayhill Inc.
SWITCH PUSH BUTTON N.C. SPST ROUND BUTTON 1A 220VAC MOMENTARY PANEL MOUNT SOLDER LUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 30-252 RED | 30-252 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Round, Button |
| Circuit | SPST-NC | SPST-NC |
| Color - Actuator/Cap | Red | Black, Red |
| Current Rating (Amps) | 1 A | 1 A |
| Electrical Life | 250000 Cycles | 250000 Cycles |
| Features | Sealed - Fully | Sealed - Fully, Epoxy Sealed Terminals |
| Mounting Type | Panel Mount, Rear | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Panel Cutout Dimensions [diameter] | 6.75 mm | 6.75 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Solder Lug | Solder Lug, Wire Leads |
| Type | Standard | Standard |
| Voltage Rating - AC | 115 V | 115 V |
30-252 Series
SWITCH PUSH SPST-NC 1A 115V
| Part | Actuator Type | Electrical Life | Voltage Rating - AC | Type | Current Rating (Amps) | Actuator Marking | Color - Actuator/Cap | Circuit | Panel Cutout Dimensions [diameter] | Termination Style | Mounting Type | Features | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 30-252 BLK | Button, Round | 250000 Cycles | 115 V | Standard | 1 A | No Marking | Black | SPST-NC | 6.75 mm | Solder Lug | Panel Mount, Rear | Sealed - Fully | On-Mom | 85 °C | -40 °C |
Grayhill Inc. 30-252 RED | Button, Round | 250000 Cycles | 115 V | Standard | 1 A | No Marking | Red | SPST-NC | 6.75 mm | Solder Lug | Panel Mount, Rear | Sealed - Fully | On-Mom | 85 °C | -40 °C |
Grayhill Inc. 30-252 BLK-EW | Button, Round | 250000 Cycles | 115 V | Standard | 1 A | No Marking | Black | SPST-NC | 6.75 mm | Wire Leads | Panel Mount, Rear | Epoxy Sealed Terminals | On-Mom | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
30-252 Series
Pushbutton Switch SPST-NC Standard Panel Mount, Rear
