Cables, Wires

81044/12-24-923

Active

TE Connectivity Raychem Cable Protection

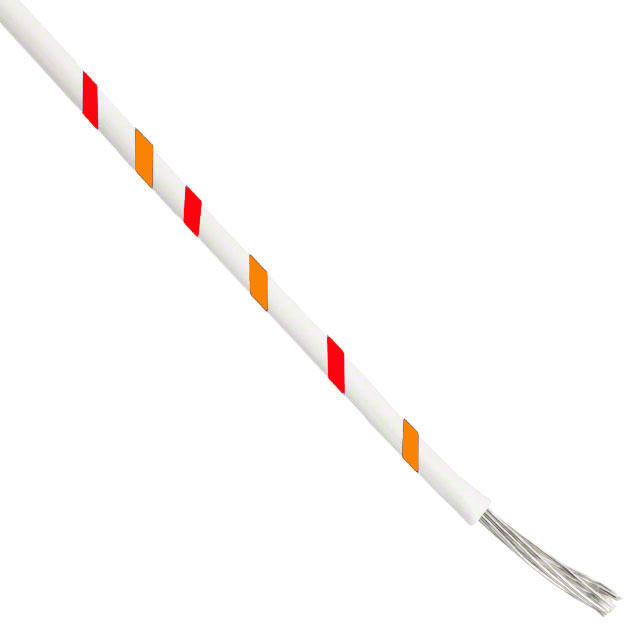

HOOK-UP DUAL STRND 24AWG W/R/O

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	81044/12-24-923

Cable Type	Hook-Up, Dual Wall
Conductor Material	Copper, Tinned
Grade	Military
Jacket (Insulation) Diameter [diameter]	0.04 in
Jacket (Insulation) Diameter [diameter]	1.02 mm
Jacket (Insulation) Material	Polyvinyl Fluoride (PVF)
Jacket (Insulation) Thickness	0.003 in
Jacket (Insulation) Thickness	0.076 mm
Jacket Color	Red, Orange Stripe, White
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Qualification	MIL-C-27500, MIL-W-81044
Voltage	600 V
Wire Gauge	24 AWG

81044 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Qualification	Wire Gauge	Cable Type	Grade	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand	Length [x]	Length [x]	Spool Size	Spool Size	Length	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]
TE Connectivity Raychem Cable Protection 81044/12-14-0CS3209	-65 ░C	200 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	13.5 AWG	Hook-Up Dual Wall	Military	2.26 mm	0.089 "	0.003 in	0.076 mm	Black	600 V	Polyvinyl Fluoride (PVF)
TE Connectivity Raychem Cable Protection 81044/6-22-9	-65 ░C	150 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	22 AWG	Hook-Up Dual Wall	Military	1.75 mm	0.069 in	0.005 in	0.13 mm		600 V	Polyvinyl Fluoride (PVF)	19 Strands	34 AWG
TE Connectivity Raychem Cable Protection 81044/12-22-926	-65 ░C	200 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	22 AWG	Hook-Up Dual Wall	Military	1.19 mm	0.047 in	0.003 in	0.076 mm	Blue Stripe Red White	600 V	Polyvinyl Fluoride (PVF)	19 Strands	34 AWG
TE Connectivity Raychem Cable Protection 81044/9-10-1	-65 ░C	150 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	10 AWG	Hook-Up Dual Wall	Military	3.94 mm	0.155 in	0.005 in	0.13 mm	Brown	600 V	Polyvinylidene Fluoride (PVDF)		26 37
TE Connectivity Raychem Cable Protection 81044/9-22-2	-65 ░C	150 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	22 AWG	Hook-Up Dual Wall	Military	1.57 mm	0.062 in	0.005 in	0.13 mm	Red	600 V	Polyvinylidene Fluoride (PVDF)	19 Strands	34 AWG
TE Connectivity Raychem Cable Protection 81044/12-22-2	-65 ░C	150 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	22 AWG	Hook-Up Dual Wall	Military	1.19 mm	0.047 in	0.0031 in	0.08 mm	Red	600 V	Polyvinyl Fluoride (PVF)	19 Strands	34 AWG	50 ft 500 '	152.4 m	1524 m	5000 '	Enter Number of Feet in Order Quantity	1.52 m 15.24 m 300 mm	1 ft 5 '
TE Connectivity Raychem Cable Protection 81044/9-22-9	-65 ░C	150 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	22 AWG	Hook-Up Dual Wall	Military	1.57 mm	0.062 in	0.005 in	0.13 mm		600 V	Polyvinylidene Fluoride (PVDF)	19 Strands	34 AWG	50 ft 100 ft 500 '	30.5 m 152.4 m				1.52 m 15.24 m 300 mm	1 ft 5 '
TE Connectivity Raychem Cable Protection 81044/12-20-9-BARREL	-65 ░C	200 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	20 AWG	Hook-Up Dual Wall	Military	1.4 mm	0.055 in	0.003 in	0.076 mm		600 V	Polyvinyl Fluoride (PVF)										19	32 AWG
TE Connectivity Raychem Cable Protection 81044/13-26-5	-65 ░C	150 °C	Copper Silver Coated	MIL-C-27500 MIL-W-81044	26 AWG	Hook-Up Dual Wall	Military			0.003 in	0.076 mm	Green	600 V	Polyvinylidene Fluoride (PVDF)		19 38
TE Connectivity Raychem Cable Protection 81044/12-24-923	-65 ░C	200 °C	Copper Tinned	MIL-C-27500 MIL-W-81044	24 AWG	Hook-Up Dual Wall	Military	1.02 mm	0.04 in	0.003 in	0.076 mm	Orange Stripe Red White	600 V	Polyvinyl Fluoride (PVF)
