6280-3PG-311

Active

Conxall/Switchcraft

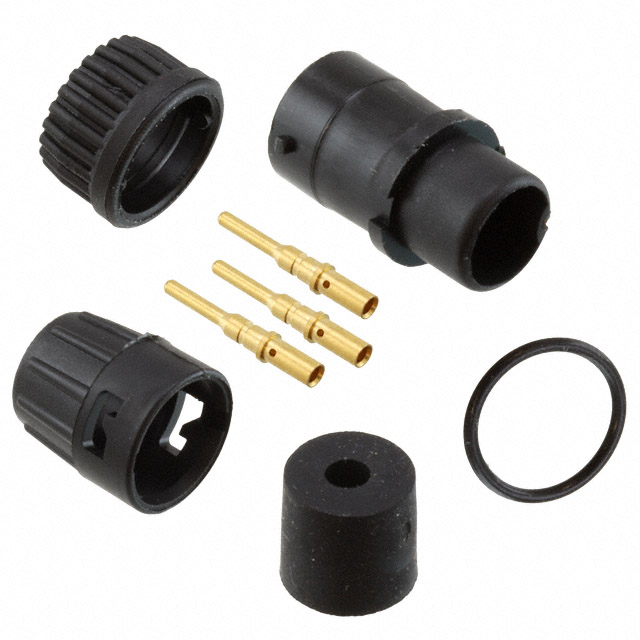

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-3PG-311

Active

Conxall/Switchcraft

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6280-3PG-311	6280-3PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	6.35 mm
Cable Opening	-	0.23 - 0.25 in
Cable Opening	-	0.21 - 0.22 in
Cable Opening	-	5.33 - 5.59 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	5.84 mm
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6280-3PG Series

CONN PLUG MALE 3POS GOLD CRIMP

Part	Primary Material	Fastening Type	Backshell Material, Plating	Voltage Rating	Current Rating (Amps)	Features	Ingress Protection	Color	Shielding	Termination	Contact Material	Connector Type	Applications	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6280-3PG-3DC	Plastic	Bayonet Lock	Nylon, Polyamide (PA)	600 V	Varies by Wire Gauge	Backshell	Weathertight	Black	Unshielded	Crimp	Brass	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Gold	-40 °C	115 °C	Keyed	Free Hanging (In-Line)
Conxall/Switchcraft 6280-3PG-311	Plastic	Bayonet Lock	Nylon, Polyamide (PA)	600 V	Varies by Wire Gauge	Backshell	Weathertight	Black	Unshielded	Crimp	Brass	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Gold	-40 °C	115 °C	Keyed	Free Hanging (In-Line)	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6280-3PG-522	Plastic	Bayonet Lock	Nylon, Polyamide (PA)	600 V	Varies by Wire Gauge	Backshell	Weathertight	Black	Unshielded	Crimp	Brass	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Gold	-40 °C	115 °C	Keyed	Free Hanging (In-Line)				6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6280-3PG-315	Plastic	Bayonet Lock	Nylon, Polyamide (PA)	600 V	Varies by Wire Gauge	Backshell	Weathertight	Black	Unshielded	Crimp	Brass	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Gold	-40 °C	115 °C	Keyed	Free Hanging (In-Line)								0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 6280-3PG-321	Plastic	Bayonet Lock	Nylon, Polyamide (PA)	600 V	Varies by Wire Gauge	Backshell	Weathertight	Black	Unshielded	Crimp	Brass	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Gold	-40 °C	115 °C	Keyed	Free Hanging (In-Line)					0.23 in	0.21 in	5.33 mm			5.84 mm
Conxall/Switchcraft 6280-3PG-516	Plastic	Bayonet Lock	Nylon, Polyamide (PA)	600 V	Varies by Wire Gauge	Backshell	Weathertight	Black	Unshielded	Crimp	Brass	Male Pins, Plug	Automotive, Communication Systems, Instrumentation	Gold	-40 °C	115 °C	Keyed	Free Hanging (In-Line)											0.16 in	0.18 in	4.06 mm	4.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.89
		10	$ 6.70
		25	$ 6.28
		50	$ 5.98
		100	$ 5.70
		300	$ 5.27
		500	$ 5.09
		1000	$ 4.84

Description

General part information

6280-3PG Series

3 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources
