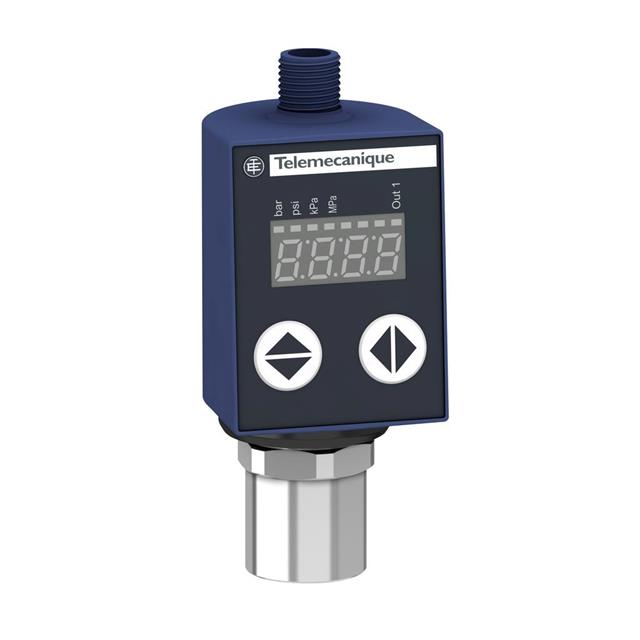

XMLR040G1P26
ActiveSCHNEIDER ELECTRIC
PRESSURE TX, DIFFERENTIAL, 0-40BAR
XMLR040G1P26
ActiveSCHNEIDER ELECTRIC
PRESSURE TX, DIFFERENTIAL, 0-40BAR
Description
General part information
XMLR040G1P26
PRESSURE TX, DIFFERENTIAL, 0-40BAR
Technical Specifications
Parameters and characteristics for this part
| Specification | XMLR040G1P26 |
|---|---|
| Accuracy | 0.6 % |
| Applications | Industrial Automation |
| Maximum Pressure | 2175.57 PSI |
| Operating Pressure | 2175.57 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | PNP- NC, Analog Current, NO |
| Package / Case | Module |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Female |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 33 V |
| Voltage - Supply (Minimum) | 17 V |
