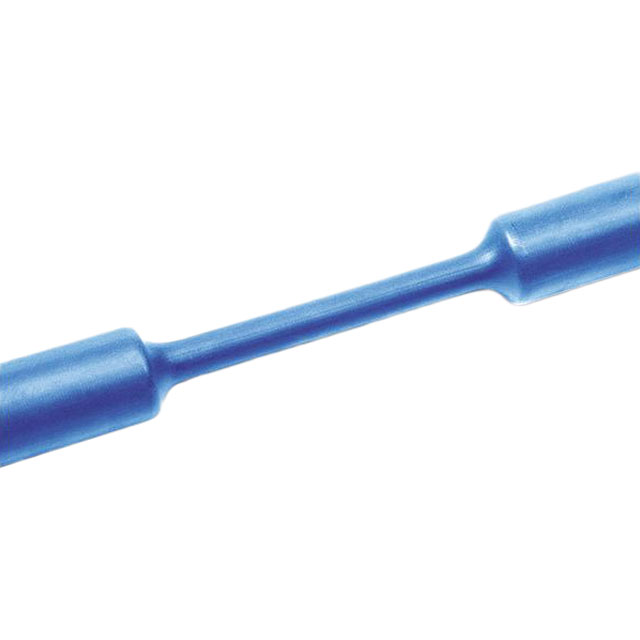

Specification	309-65157

Color	Blue
Features	Flame Retardant, Solvent Resistant, Oil Resistant, Chemical Resistant
Inner Diameter - Recovered	0.187 in
Inner Diameter - Supplied	0.374 in
Length	48 in
Material	Irradiated, Polyolefin (PO)
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.024 in
Shelf Life	60 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2
Storage/Refrigeration Temperature	104 °F
Type	Flexible, Tubing

309-65 Series

...

Part	Shelf Life	Length	Color	Inner Diameter - Supplied	Operating Temperature (Min)	Operating Temperature (Max)	Material	Type	Inner Diameter - Recovered	Recovered Wall Thickness	Shrinkage Ratio	Storage/Refrigeration Temperature	Shrink Temperature	Features	Shelf Life Start
HELLERMANNTYTON 309-65147	60 Months	48 in	Red	0.252 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.125 in	0.022 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65164	60 Months	48 in	Black	0.5 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.25 in	0.024 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65112	60 Months	100 ft	Black	0.093 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.047 in	0.019 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65292	60 Months	48 in	Green	0.252 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.125 in	0.022 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65113	60 Months	48 in	Clear	0.093 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.047 in	0.019 in	2	104 °F	70 °C	Chemical Resistant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65297	60 Months	48 in	Red	1 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.5 in	0.034 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65140	60 Months	50 ft	Clear	0.252 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.125 in	0.022 in	2	104 °F	70 °C	Chemical Resistant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65123	60 Months	1000 ft	Black	0.125 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.063 in	0.019 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant	Date of Manufacture
HELLERMANNTYTON 309-65131	60 Months	50 ft	Red	0.189 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.094 in	0.019 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant
HELLERMANNTYTON 309-65158	60 Months	48 in	White	0.374 in	-55 °C	135 °C	Irradiated Polyolefin (PO)	Flexible Tubing	0.187 in	0.024 in	2	104 °F	70 °C	Chemical Resistant Flame Retardant Oil Resistant Solvent Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Materials Guide for Bundling & Securing

309-65157 | Datasheet

Technical Data Sheet EN
