VENT CG,BRASS,M16,5-9,8-2490540-6

2490540-6

Active
TE Connectivity AMP Connectors

VENT CG,BRASS,M16,5-9,8

Find alt
VENT CG,BRASS,M16,5-9,8-2490540-6

2490540-6

Active
TE Connectivity AMP Connectors

VENT CG,BRASS,M16,5-9,8

Find alt

Description

General part information

2490540-6

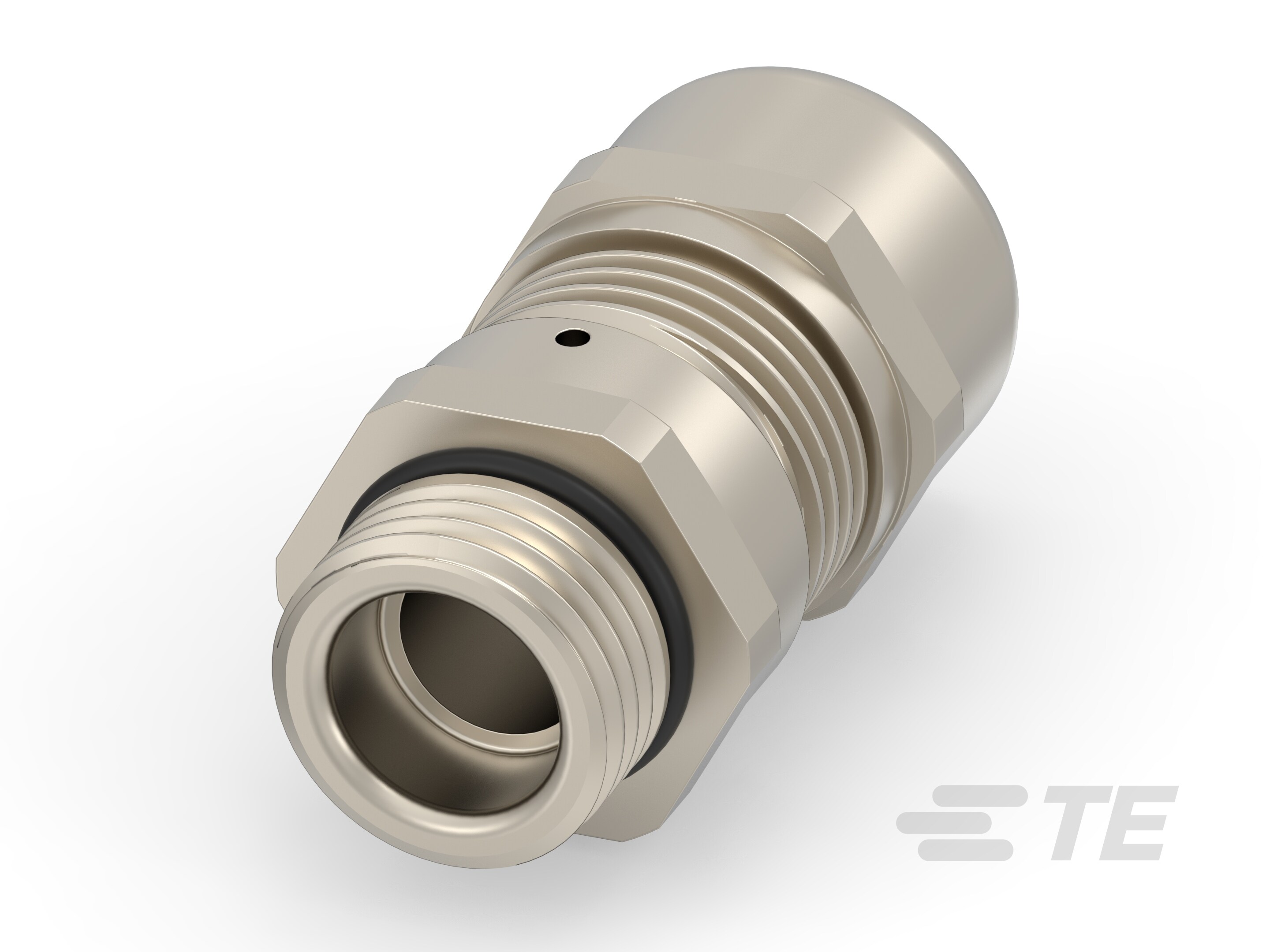

Ventilated Cable Gland, Brass, 5 – 9 mm Clamping Range, Nickel Plating, IP67

Technical Specifications

Parameters and characteristics for this part

Specification2490540-6
ColorSilver
Ingress Protection DescriptionDust Tight, Waterproof, Water Resistant
Ingress Protection IP RatingIP67, IP66
MaterialNickel Plated, Brass
Operating Temperature (Max)100 °C
Operating Temperature (Min)-20 °C
Outside Cable Diameter (Max)0.354 in
Outside Cable Diameter (Min)0.197 in
Thread Diameter16 mm
Thread Length0.315 in
Thread Pitch1.5 mm
TypeCable Gland
