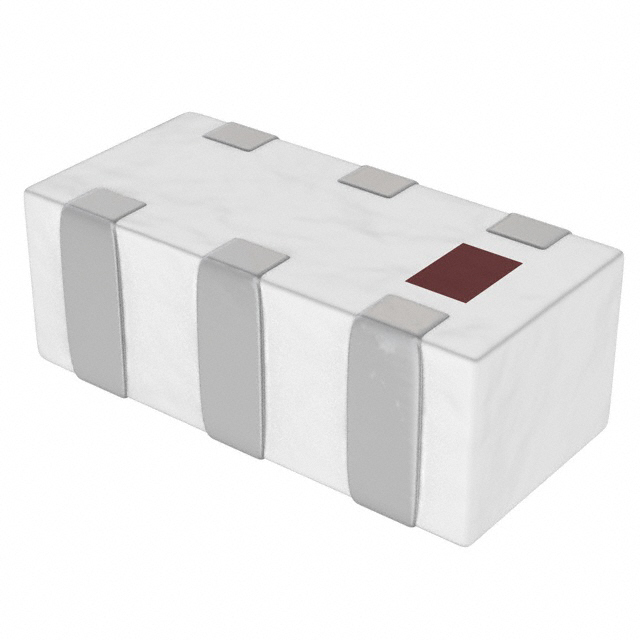

5325BL15B050001E
ObsoleteJohanson Technology Inc.
BALUN CERAMIC CHIP WIFI 5325MHZ
5325BL15B050001E
ObsoleteJohanson Technology Inc.
BALUN CERAMIC CHIP WIFI 5325MHZ
Description
General part information
5325BL15B050001E
RF Balun 5.15GHz ~ 5.5GHz 50 / 50Ohm 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 5325BL15B050001E |
|---|---|
| Frequency Range (Max) | 5.5 GHz |
| Frequency Range (Min) | 5.15 GHz |
| Impedance - Balanced | 50 Ohm |
| Impedance - Unbalanced | 50 Ohm |
| Insertion Loss (Max) | 1 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Phase Difference | 180 ° |
| Phase Difference Tolerance | 10 ° |
| Return Loss (Min) | 9.5 dB |
