Description
General part information
059-0107

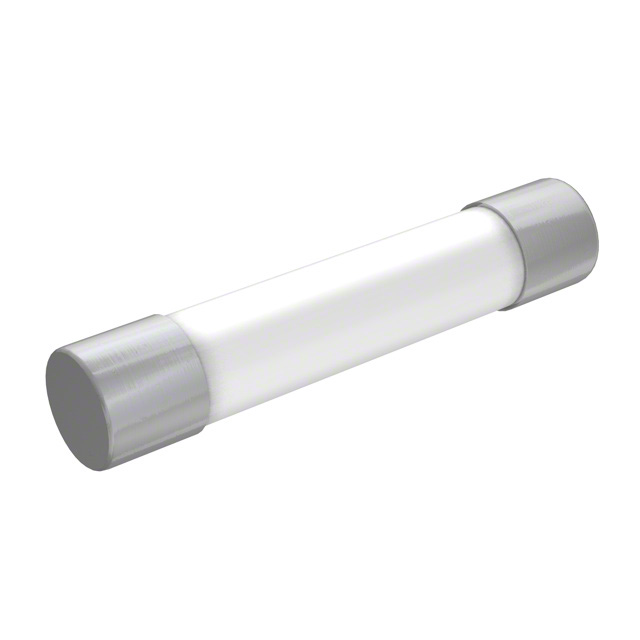

250 mA 440 V AC DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | 059-0107 |
|---|---|
| Breaking Capacity | 33 kA |
| Current Rating | 0.25 A |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Requires Holder |
| Package / Case | 3AG, 1/4" x 1-1/4", 3AB |
| Package Diameter | 0.25 in |
| Package Length | 1.25 in |
| Package Name | 3AB, 3AG |
| Size / Dimension Diameter | 0.251 in |
| Size / Dimension Length | 1.262 in |
| Voltage Rating - AC | 440 V |
