XPSUEP14AP
ActiveSAFETY RELAY, 24 VAC/VDC, 4PST-NO, DPST-NC, HARMONY XPS SERIES, DIN RAIL, 5 A, SCREW
XPSUEP14AP
ActiveSAFETY RELAY, 24 VAC/VDC, 4PST-NO, DPST-NC, HARMONY XPS SERIES, DIN RAIL, 5 A, SCREW
Description
General part information
XPSUEP14AP

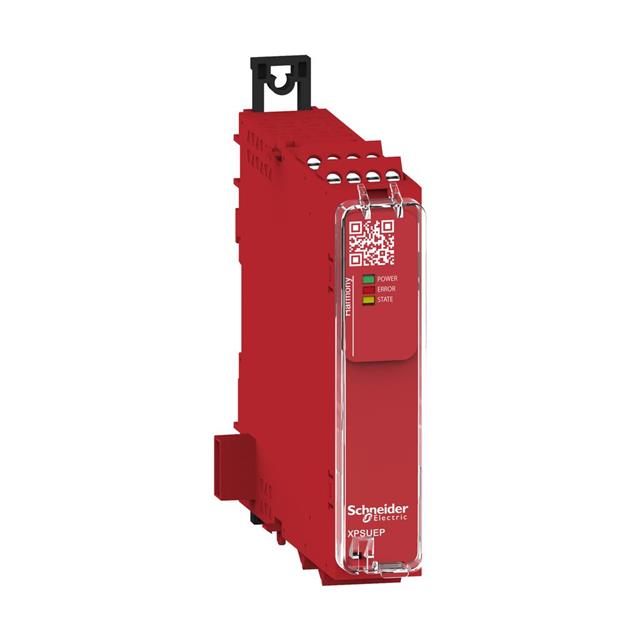

XPSUEP14AP is a harmony XPSU series Preventa safety relay designed for extending the number of safety contacts. This safety relay is powered with 24VAC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds a safety extension bus, 4 NO and 2 single NC safety outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay is suitable for applications such as food and beverage, hoisting, material handling, material working, packaging.
Technical Specifications
Parameters and characteristics for this part
| Specification | XPSUEP14AP |
|---|---|
| Approval Agency | TUV, cULus |
| Controller Type | Safety Edge |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
