2834079-4
ActiveTE Connectivity AMP Connectors

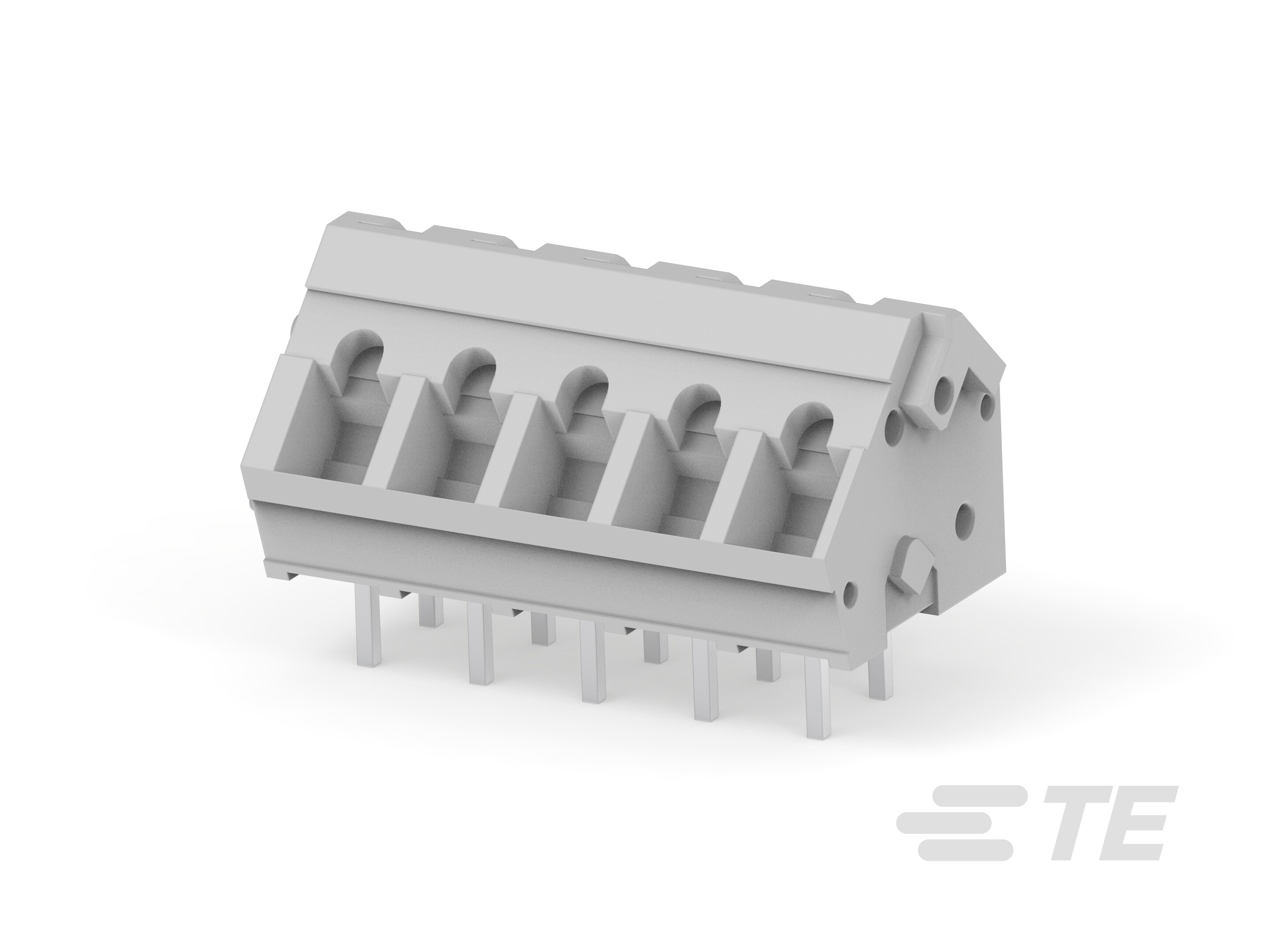

5.08MM TOP ENTRY MSC 5P_GY
2834079-4
ActiveTE Connectivity AMP Connectors
5.08MM TOP ENTRY MSC 5P_GY
Description
General part information
2834079-4
5 Position PCB Terminal Block, Receptacle, Wire-to-Board, 5.08 mm [.02 in] Centerline, 1 Row, 45° Wire Entry Angle, 28 – 14 AWG, .08 – 2.5 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834079-4 |
|---|---|
| Color | Gray |
| Current | 16 A |
| Features | Interlocking (Side) |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
