7175890
ActiveMcGill Microwave Systems
8 ELEMENT YAGI 790-960 MHZ
7175890
ActiveMcGill Microwave Systems
8 ELEMENT YAGI 790-960 MHZ
Description
General part information
7175890

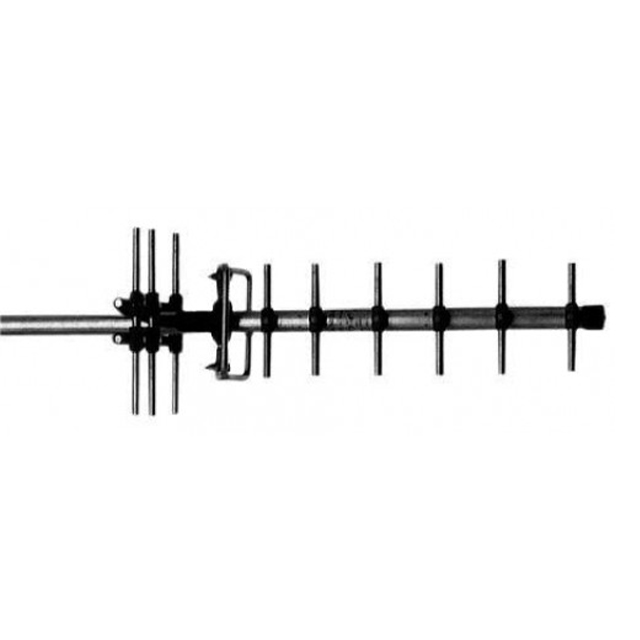

RF ANTENNA Yagi, 8-Element N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 7175890 |
|---|---|
| Antenna Element Count | 8 elements |
| Antenna Type | Yagi |
| Features | 1m, Cable |
| Frequency (Center/Band) | 875 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 0.79 GHz |
| Gain | 12.1 dBi |
| Height (Max) | 38.189 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 150 W |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 1.5 |
