364199-E
ActiveTE Connectivity AMP Connectors
SRCBUG A 2,54 2 2 CSI 163 E1 ADV J 2 324
364199-E
ActiveTE Connectivity AMP Connectors
SRCBUG A 2,54 2 2 CSI 163 E1 ADV J 2 324
Description
General part information
364199-E

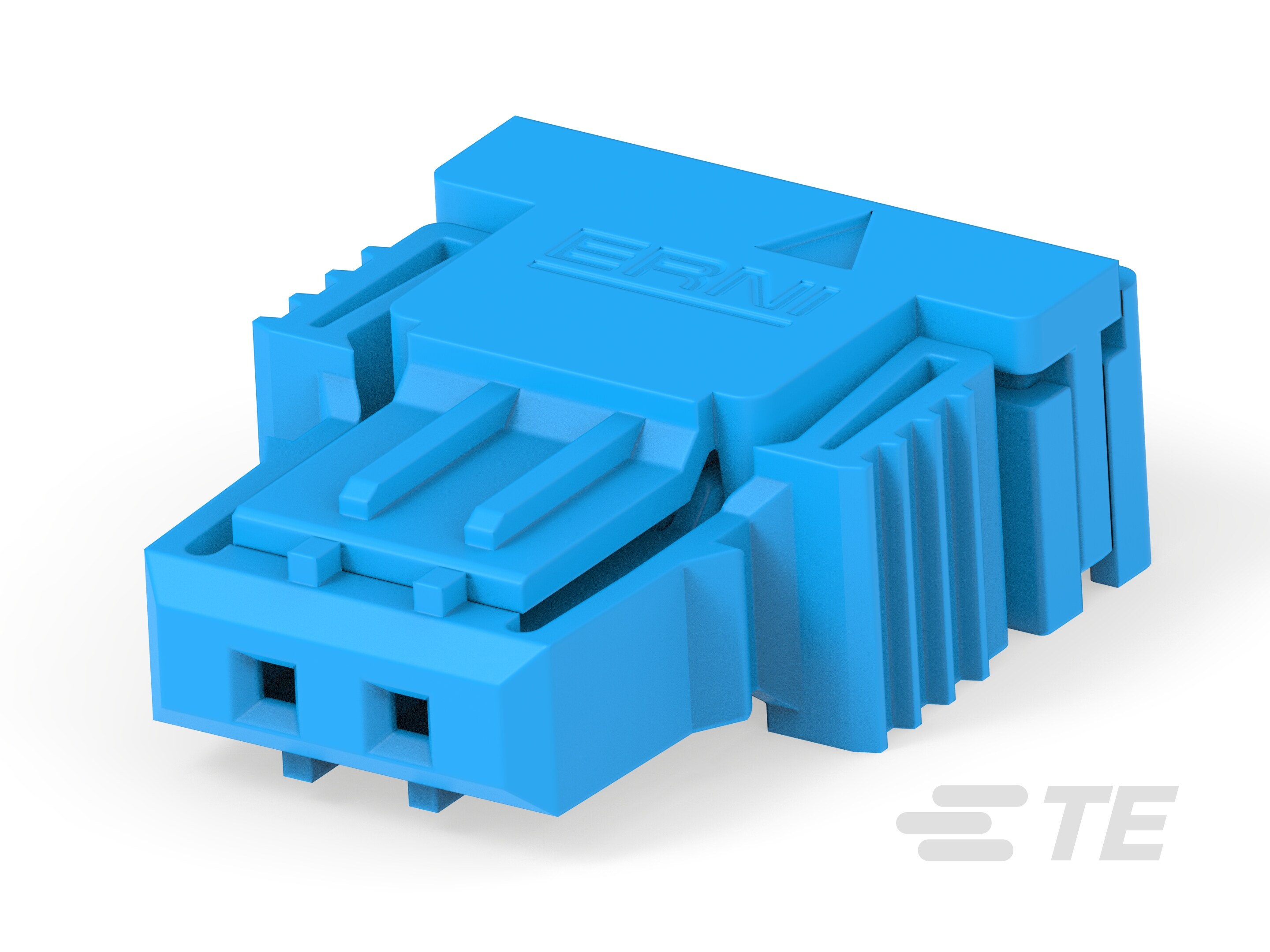

Housing, Housing for Female Terminals, Wire-to-Board, 2 Position, 2.54 mm [.1 in] Centerline, Crimp, 1 Row, Blue, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 364199-E |
|---|---|
| Color | Blue |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
