Specification	1050756-1

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-402
Cable Group Diameter (Semi Rigid)	0.141 in
Connector Style	SMA
Connector Type	Male Pin, Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm

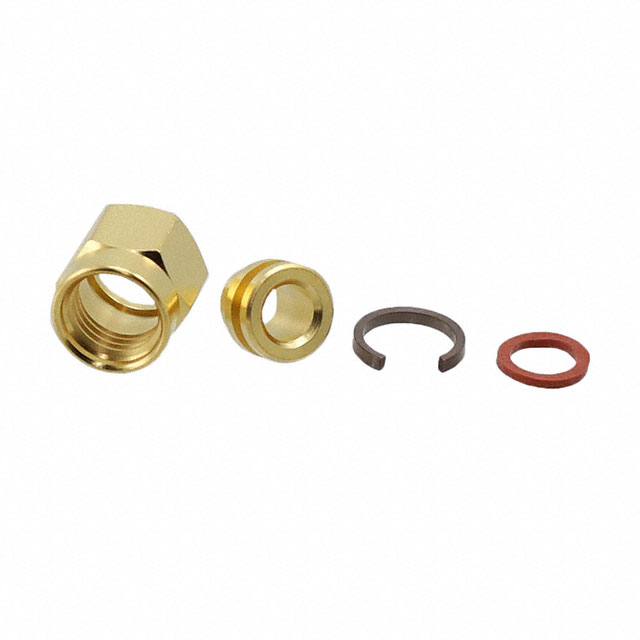

Includes	Ring, Connector, Gasket, Coupling Nut
Includes Total Count	4 pcs
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	335 V

1050 Series

Part	Center Contact Plating	Body Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Includes	Includes Total Count	Housing Color	Connector Style	Mounting Type	Number of Ports	Features	Shield Termination	Center Contact Material	Impedance	Contact Termination	Fastening Type	Frequency - Max	Connector Type	Voltage Rating	Mating Cycles	Mounting Feature	Body Finish	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Convert From (Adapter End)	Conversion Type	Style	Adapter Type	Adapter Series	Center Gender
TE Connectivity AMP Connectors 1053252-1	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Connector Contact Gasket	3 pcs	Silver	SMA	Panel Mount Threaded	1	Hermetically Sealed	Solder	Beryllium Copper	50 Ohm	Solder	Threaded	18 GHz	Female Socket Recepture
TE Connectivity AMP Connectors 1053005-1									SMA
TE Connectivity AMP Connectors 1053403-1	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	125 °C			Silver	SMA	Panel Mount	1		Solder	Beryllium Copper	50 Ohm	Turret	Threaded	12.4 GHz	Female Socket Jack	335 V	500 cycles	Flange
TE Connectivity AMP Connectors 1053241-1	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)					Gold	SMA	Panel Mount Threaded	1	Extended Insulation Hermetically Sealed	Solder	Beryllium Copper	50 Ohm	Solder	Threaded		Female Socket Recepture		500 cycles		Gold
TE Connectivity AMP Connectors 1053767-1	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C					Free Hanging (In-Line)				Beryllium Copper	50 Ohm		Threaded	18 GHz						SMA Plug	Male Pin	Male Pin SMA Plug	Same Series	Straight	Plug to Plug	OSM to OSM	Male
TE Connectivity AMP Connectors 1053086-1	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Connector Contact Lockwasher Nut	4 pcs	Gold	SMA	Panel Mount	1	Hermetically Sealed	Solder	Beryllium Copper	50 Ohm	Solder	Threaded	18 GHz	Female Socket Recepture	335 V	500 cycles	Bulkhead Front Side Nut	Gold
TE Connectivity AMP Connectors 1053378-1	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	125 °C			Gold	SMA	Right Angle Through Hole	1		Solder	Beryllium Copper	50 Ohm	Solder	Threaded	12.4 GHz	Female Socket Recepture	335 V	500 cycles		Gold
TE Connectivity AMP Connectors 1053226-1	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	-65 °C	125 °C	Connector Gasket	2 pcs	Gold	SMA	Panel Mount Threaded	1	Extended Insulation Hermetically Sealed	Solder	Beryllium Copper	50 Ohm	Solder	Threaded	26.5 GHz	Female Socket Recepture	335 V	500 cycles		Gold
