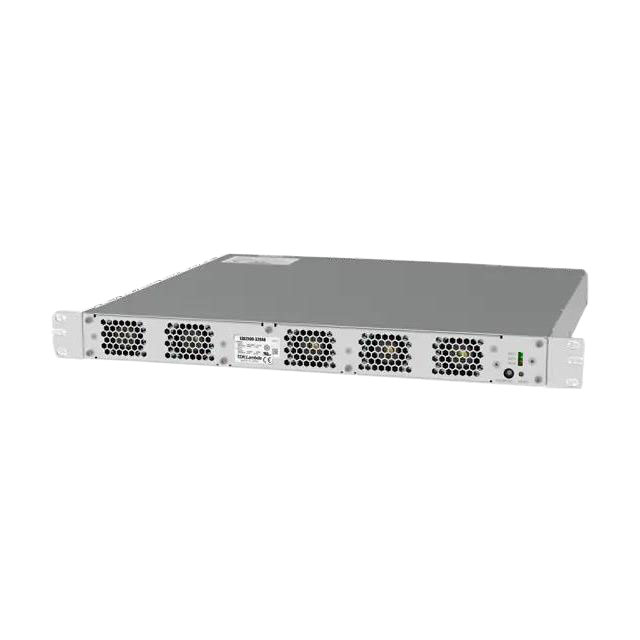

EZA2500-32048CO
ActiveFRONT END - RACK MOUNT DC/DC CONVERTER, ITE, 1:1, 2.496 KW, 1 OUTPUT, 48 V, 52 A
EZA2500-32048CO
ActiveFRONT END - RACK MOUNT DC/DC CONVERTER, ITE, 1:1, 2.496 KW, 1 OUTPUT, 48 V, 52 A
Description
General part information
EZA2500-32048CO
EZA2500-32048CO is an EZA2500 series bi-directional isolated DC-DC converter. It is designed for energy storage systems with rechargeable batteries, this digitally controlled, compact 1U power supply can automatically change conversion direction from high voltage dc sources, powered by solar or wind, to 48Vdc batteries and vice versa. Other applications include lithium-ion battery testing as well as the utilization of regenerated energy from robots, cranes, autonomous ground vehicles and elevators. It includes overcurrent, overpower, under and overvoltage, overtemperature protection. Certified by IEC/EN/UL/CSA/EN60950-1, EC/EN/UL/CSA/EN62368-1.
Technical Specifications
Parameters and characteristics for this part
| Specification | EZA2500-32048CO |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 52 A |
| Efficiency | 92 % |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 2496 W |
| Size / Dimension Height | 1.72 in |
| Size / Dimension Length | 16.65 in |
| Size / Dimension Width | 15.75 in |
| Standard Number | 62368-1, 60950-1 |
| Type | Enclosed, Bidirectional |
| Voltage - Input (Max) | 380 V |
| Voltage - Input (Min) | 300 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
