NBPC181610-1HF-1
ActivePasternack
ENCL PC 18X16X10" W/85 2-FAN & H
NBPC181610-1HF-1
ActivePasternack
ENCL PC 18X16X10" W/85 2-FAN & H
Description
General part information
NBPC181610-1HF-1

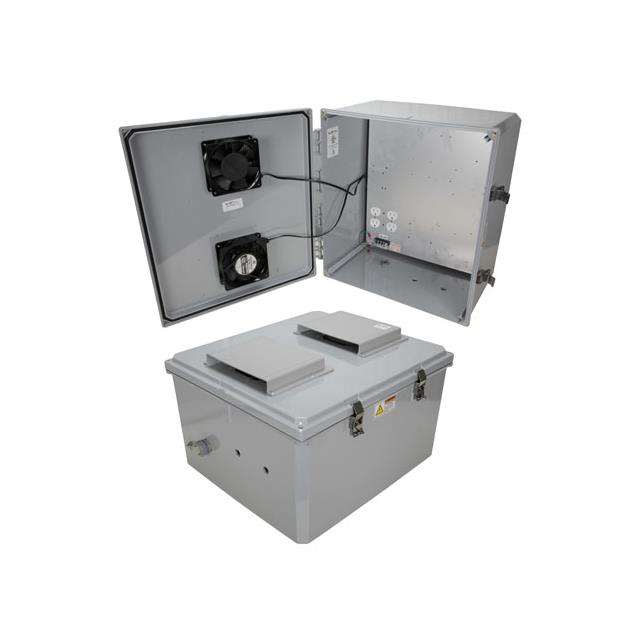

Enclosure Plastic, Polycarbonate Dark Gray Hinged Door 18.900" L x 16.800" W (480.06mm x 426.72mm) X 11.300" (287.02mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NBPC181610-1HF-1 |
|---|---|
| Area (L x W) | 318 in² |
| Color | Dark Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height | 11.3 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Ratings | NEMA 3R, IP24 |
| Size / Dimension Length | 18.9 in |
| Size / Dimension Width | 16.8 in |
