Description
General part information

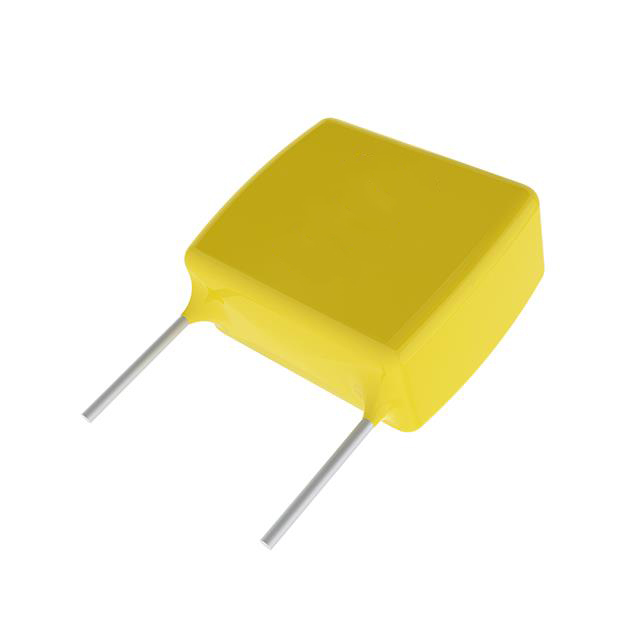

C317C152J1R5TA
Ceramic Capacitor
Technical Specifications
Parameters and characteristics for this part
| Specification | C317C152J1R5TA |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 1500 pF |
| Height - Seated (Max) | 0.2 in |
| Lead Spacing | 0.2 in |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.1 in |
| Temperature Coefficient | X7R |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
