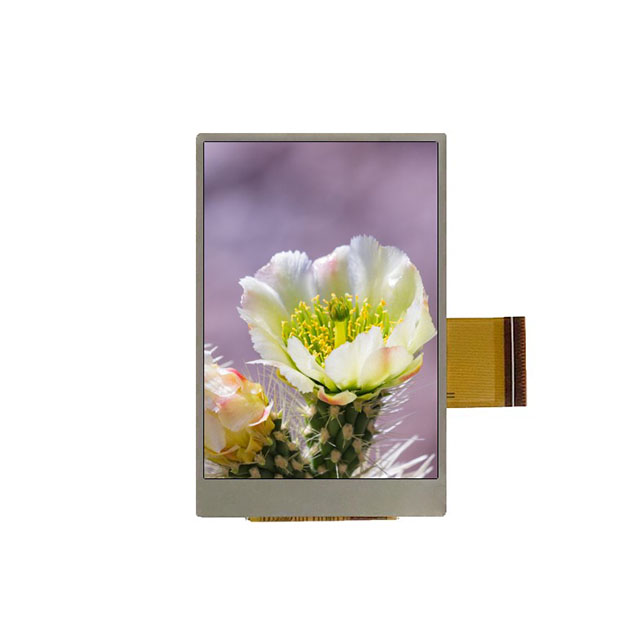

E26RB-FS500-N
ActiveFocus LCDs
2.6" TFT PARALLEL, RGB, SPI
E26RB-FS500-N
ActiveFocus LCDs
2.6" TFT PARALLEL, RGB, SPI
Description
General part information
E26RB-FS500-N
Non-Touch Graphic LCD Display Module Transflective Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB), SPI 2.6" (66.04mm) 320 x 432
Technical Specifications
Parameters and characteristics for this part
| Specification | E26RB-FS500-N |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ILI9488 |
| Diagonal Screen Size | 2.6 in |
| Display Mode | Transflective |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 320 pixels |
| Dot Pixels (Vertical) | 432 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Parallel, SPI |
| Interface Data Width | 24 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 53.78 mm |
| Viewing Area Width | 39.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
