BZ023A284ZAB
ObsoleteKYOCERA AVX
CAP 280MF -20% +80% 3.6V T/H
BZ023A284ZAB
ObsoleteKYOCERA AVX
CAP 280MF -20% +80% 3.6V T/H
Description
General part information
BZ023A284ZAB

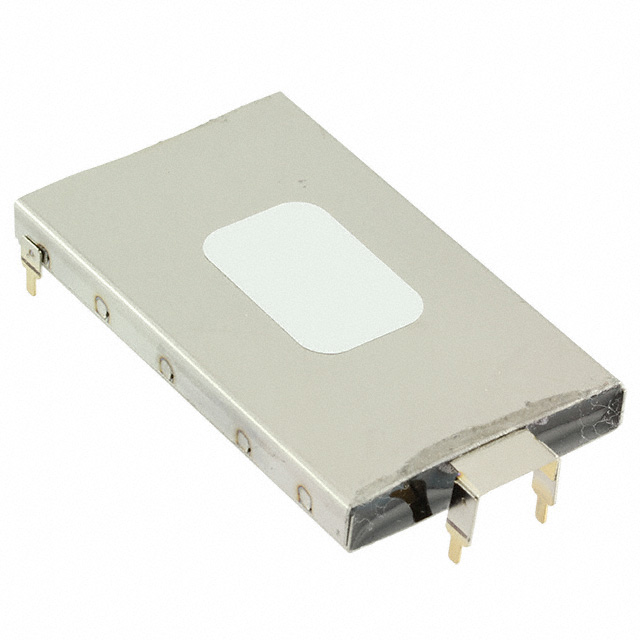

280 mF (EDLC) Supercapacitor 3.6 V BZ02, 4 Lead 45mOhm 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | BZ023A284ZAB |
|---|---|
| Capacitance | 280 mF |
| ESR (Equivalent Series Resistance) | 45 mOhm |
| Height - Seated (Max) | 0.138 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 4 Leads |
| Package Name | BZ02 |
| Size / Dimension Length | 1.89 in |
| Size / Dimension Width | 1.181 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 3.6 VDC |
