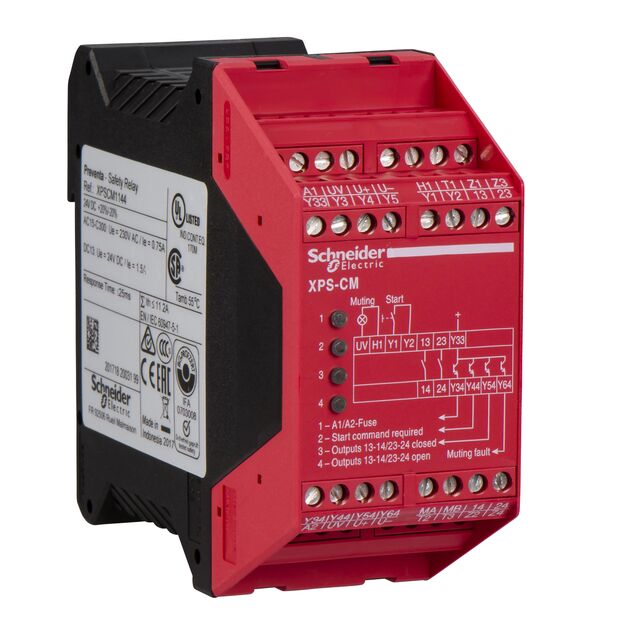

XPSCM1144P
ActiveSCHNEIDER ELECTRIC
SAFETY RELAY, 24 VDC, DPST-NO, PREVENTA XPS-CM SERIES, DIN RAIL, 1.5 A, SCREW CLAMP
XPSCM1144P
ActiveSCHNEIDER ELECTRIC
SAFETY RELAY, 24 VDC, DPST-NO, PREVENTA XPS-CM SERIES, DIN RAIL, 1.5 A, SCREW CLAMP
Description
General part information
XPSCM1144P
SAFETY RELAY, 24 VDC, DPST-NO, PREVENTA XPS-CM SERIES, DIN RAIL, 1.5 A, SCREW CLAMP
Technical Specifications
Parameters and characteristics for this part
| Specification | XPSCM1144P |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO |
| Contact Rating (Current) | 11 A |
| Features | Lighted Indicator |
| Form A Count | 2 |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Screw Terminal |
