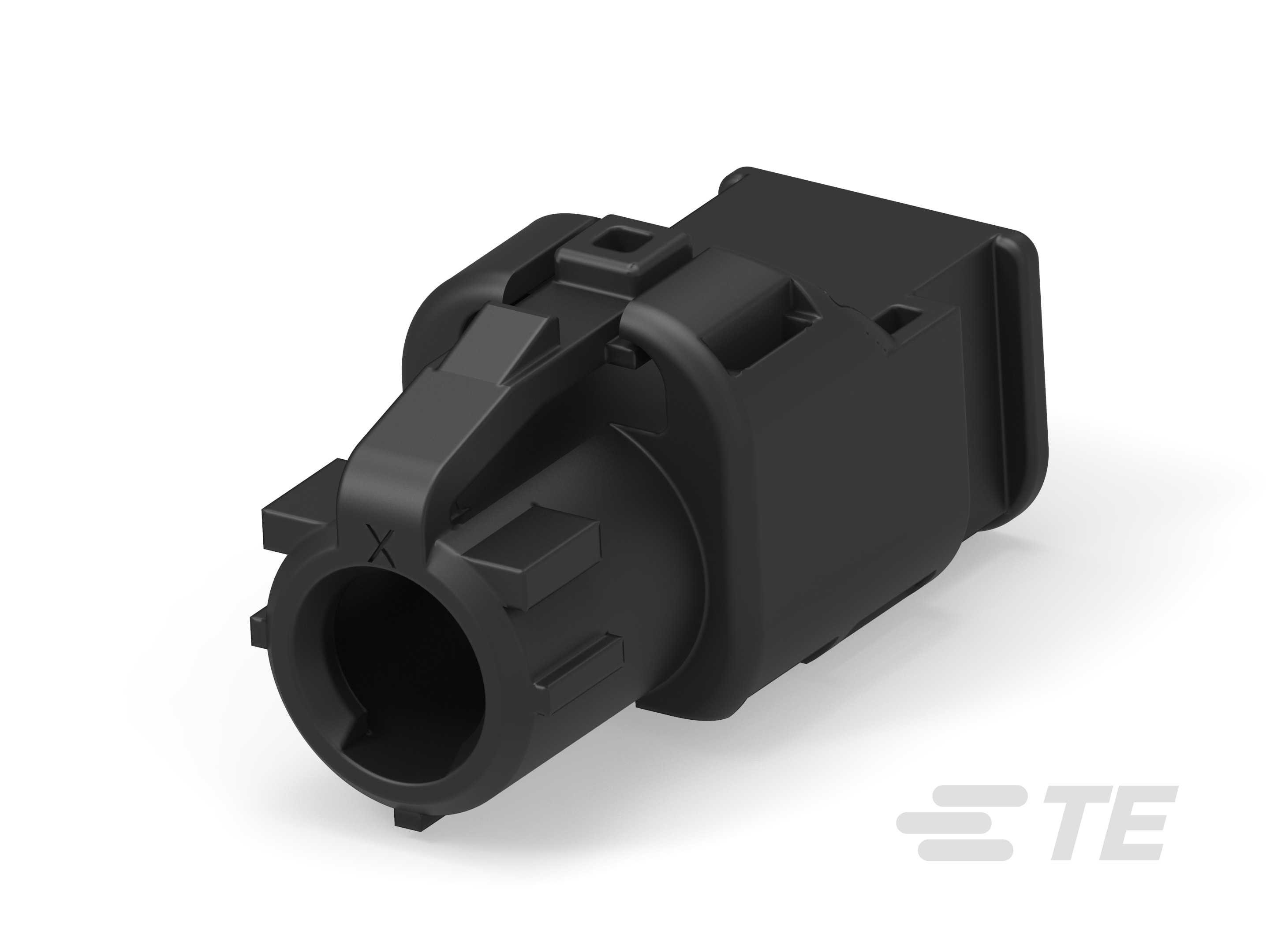

2320663-1
ActiveTE Connectivity AMP Connectors
HSD DIA 0.6,SOC HSG,180DEG,COD A,DOWN
2320663-1
ActiveTE Connectivity AMP Connectors
HSD DIA 0.6,SOC HSG,180DEG,COD A,DOWN
Description
General part information
2320663-1
Cable-to-Cable, 180° Cable Exit, 4 Position, A Code, Shielded, Housing for Female Terminals, 2 mm [.078 in] Centerline, Data Connectivity Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 2320663-1 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch | 0.079 in |
