Description
General part information
X9001492-GNDNMW

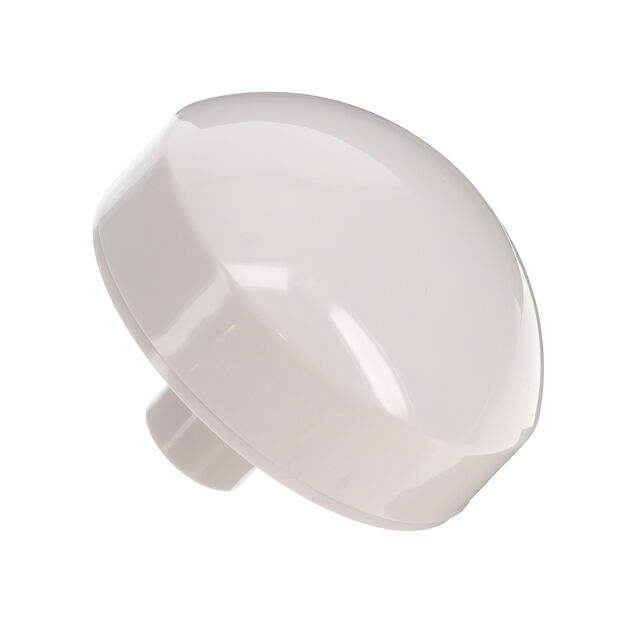

RF ANTENNA GLONASS, GPS Dome N Type Male Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | X9001492-GNDNMW |
|---|---|
| Antenna Type | Dome |
| Applications | GPS, GLONASS |
| Features | LNA |
| Frequency (Band) | 1.602 GHz |
| Frequency (Center) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Gain | 30 dBi, 26.8 dBi |
| Height (Max) | 1.87 in |
| Ingress Protection | IP67 |
| Mounting Type | Screw |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Termination Type | N Type Male |
| VSWR | 2 |
