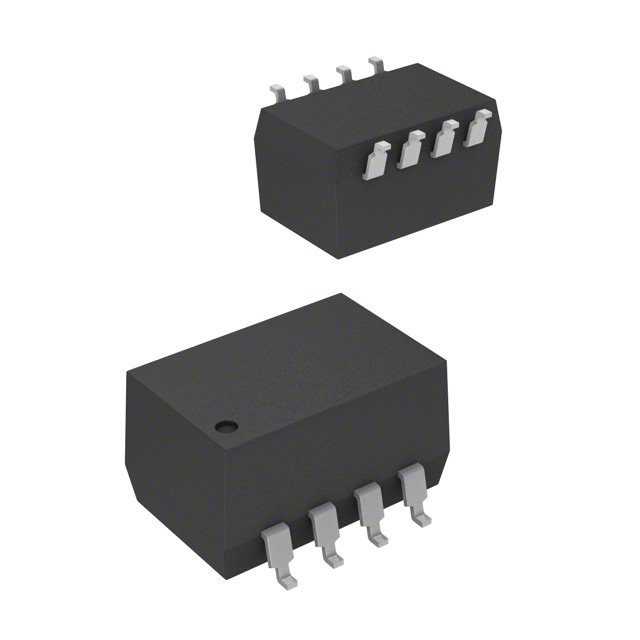

RSS8-3.33.3-R
ObsoleteRecom Power
CONV DC/DC 1W 3.3VIN 3.3VOUT
RSS8-3.33.3-R
ObsoleteRecom Power
CONV DC/DC 1W 3.3VIN 3.3VOUT
Description
General part information
RSS8-3.33.3-R
Isolated Module DC DC Converter 1 Output 3.3V 303mA 3V - 3.6V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RSS8-3.33.3-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 303 mA |
| Efficiency | 75 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8-SMD Module |
| Size / Dimension Height | 0.29 in |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.32 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 3.6 V |
| Voltage - Input (Min) | 3 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output 1 | 3.3 V |
