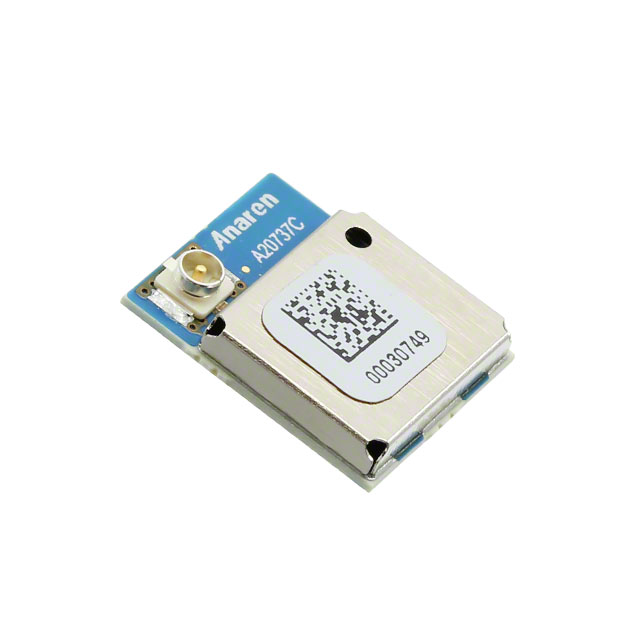

A20737CGM
ObsoleteTTM Technologies, Inc.
RF TXRX MOD BLUETOOTHU.FL SMD
A20737CGM
ObsoleteTTM Technologies, Inc.
RF TXRX MOD BLUETOOTHU.FL SMD
Description
General part information
A20737CGM
Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | A20737CGM |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 25 mA |
| Current - Transmitting (Max) | 20 mA |
| Current - Transmitting (Min) | 17 mA |
| Frequency | 2.4 GHz |
| Memory Size | 512 kB |
| Memory Size (EEPROM) | 512 kB |
| Memory Type | EEPROM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 30-SMD Module |
| Power - Output | 3 dBm |
| Protocol | Bluetooth v4.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -94 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Utilized IC / Part | BlueCore4 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
