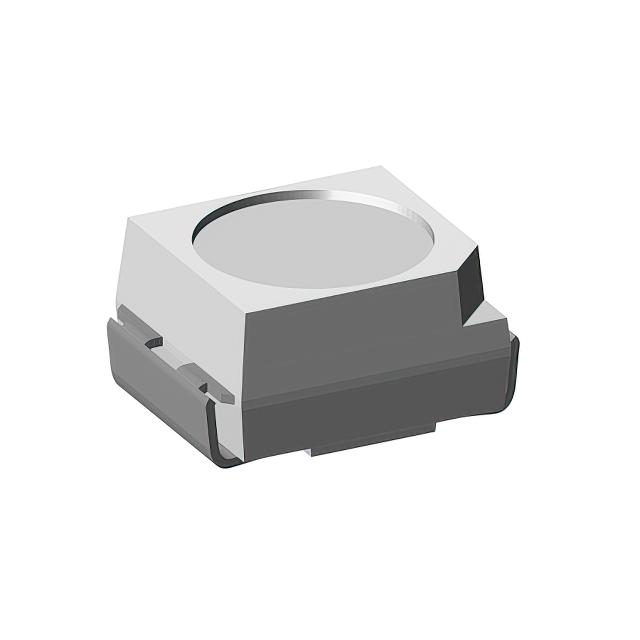

VSMY3850X01-GS18
ActiveVishay Semiconductor Opto Division
HIGH SPEED INFRARED EMITTING DIO
VSMY3850X01-GS18
ActiveVishay Semiconductor Opto Division
HIGH SPEED INFRARED EMITTING DIO
Description
General part information
VSMY3850X01-GS18
Infrared (IR) Emitter 850nm (840nm ~ 870nm) 1.6V 100mA 12mW/sr @ 100mA 120° 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | VSMY3850X01-GS18 |
|---|---|
| Current - DC Forward (If) (Max) | 100 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, J-Lead |
| Qualification | AEC-Q101 |
| Radiant Intensity (Ie) Min | 12 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 850 nm |
| Wavelength (Maximum) | 870 nm |
| Wavelength (Minimum) | 840 nm |
| Wavelength (Nominal) | 850 nm |
