2291362-3
ActiveTE Connectivity AMP Connectors

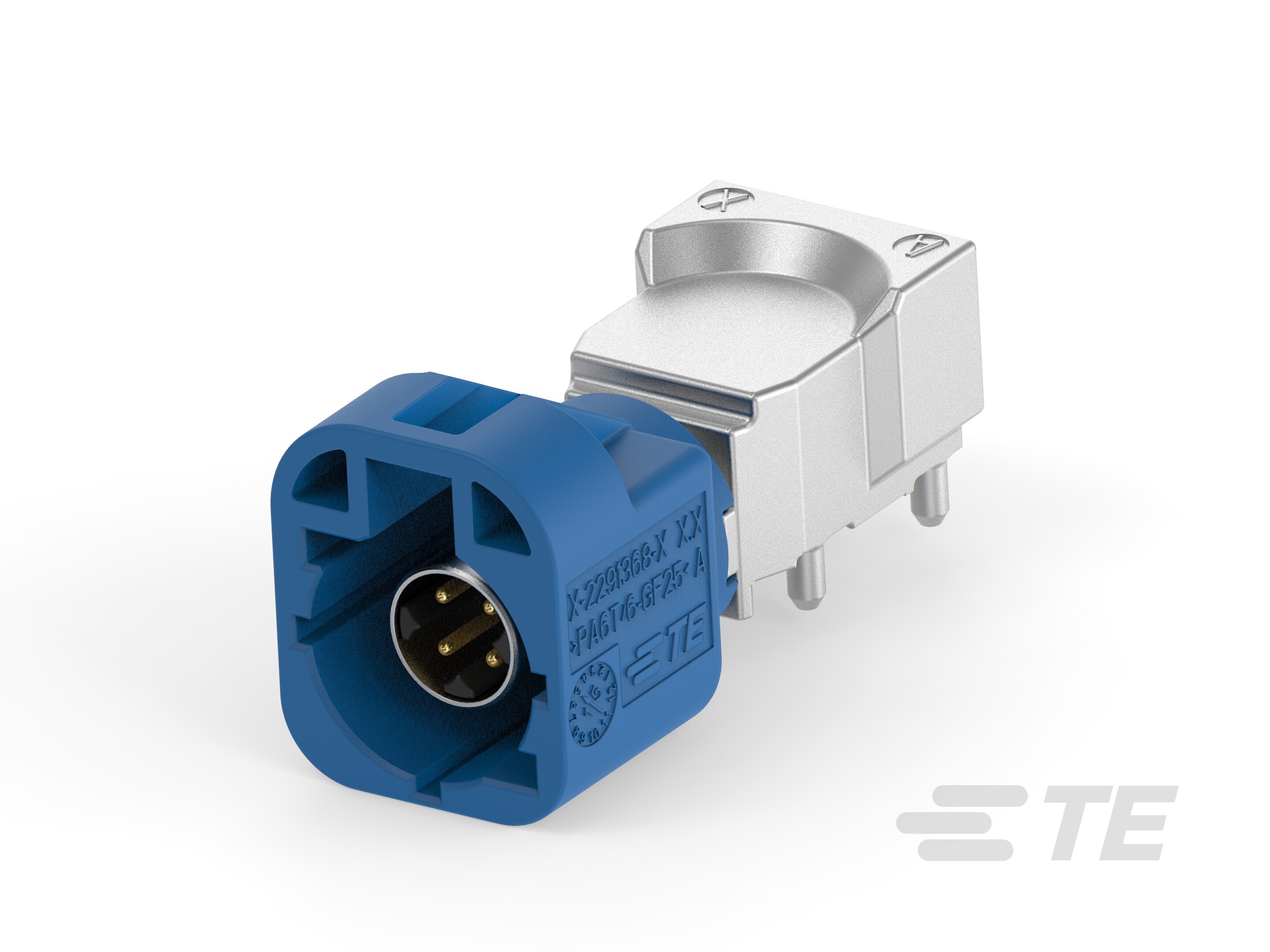

4POS,PIN DIA 0.6,HEADER ASSY,CODE C
2291362-3
ActiveTE Connectivity AMP Connectors
4POS,PIN DIA 0.6,HEADER ASSY,CODE C
Description
General part information
2291362-3
Board-to-Board / Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, C Code, 2 mm [.07 in] Centerline, Signal, Data Connectivity Headers
Technical Specifications
Parameters and characteristics for this part
| Specification | 2291362-3 |
|---|---|
| Center Contact Material | Copper Tin Alloy |
| Connector Style | Fakra, Quadraxial, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Latch Lock |
| Features | Code C |
| Housing Color | Signal, Blue |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
