XS1N12PC410D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR 24VDC 200MA XS +OPTIONS ROHS COMPLIANT: YES
XS1N12PC410D
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR 24VDC 200MA XS +OPTIONS ROHS COMPLIANT: YES
Description
General part information
XS1N12PC410D

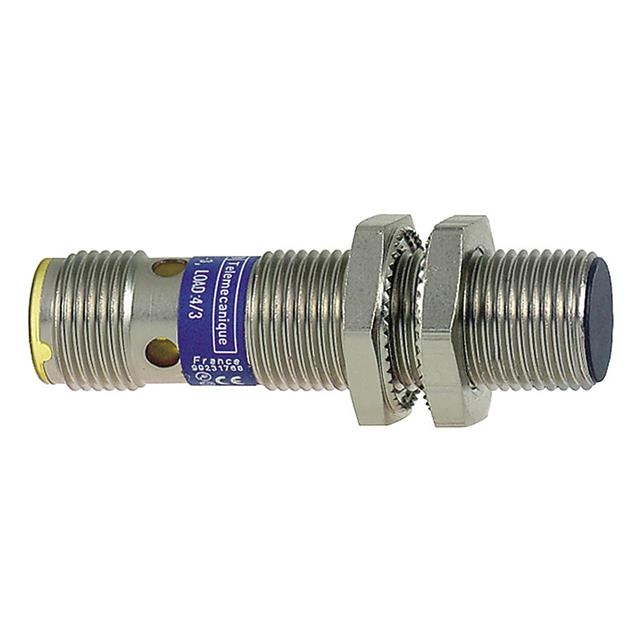

Inductive Proximity Sensor 0.079" (2mm) IP65, IP67, IP69K Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS1N12PC410D |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67, IP65, IP69K |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NC, NO, 4-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
