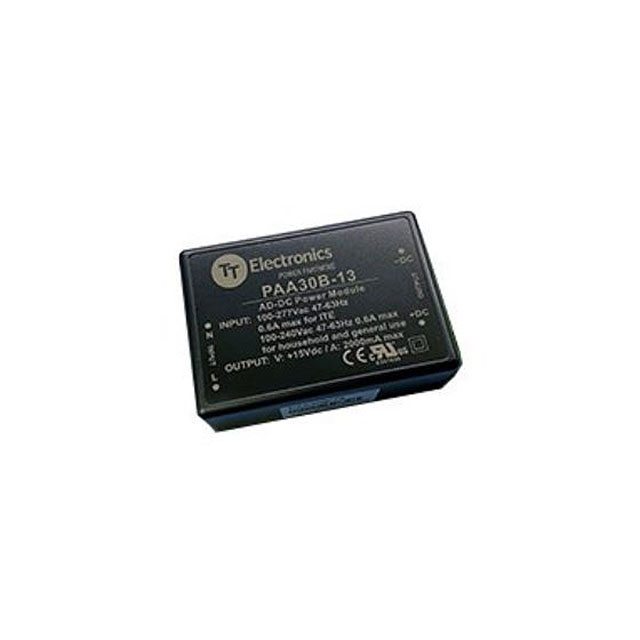

PAA30B-14C

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 24V 30W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 24V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	PAA30B-14C

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus, CE
Efficiency	86 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	30 W
Size / Dimension [x]	3.78 "
Size / Dimension [x]	96 mm
Size / Dimension [y]	2.12 in
Size / Dimension [y]	53.9 mm
Size / Dimension [z]	29 mm
Size / Dimension [z]	1.14 "
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

AC/DC CONVERTER 24V 30W

Part	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Approval Agency	Power (Watts)	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Type	Applications	Voltage - Isolation	Efficiency
TT Electronics/Power Partners Inc. PAA30B-14C	Chassis Mount	305 VAC, 430 VDC	90 VAC, 127 VDC	1	CB, CE, cURus	30 W	24 V	29 mm	3.78 "	2.12 in	96 mm	53.9 mm	1.14 "	Universal Input	Enclosed	Household Appliances, ITE (Commercial)	4000 V	86 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 305 VAC, 127 ~ 430 VDC Input
