9510-1901

Active

Belden Inc.

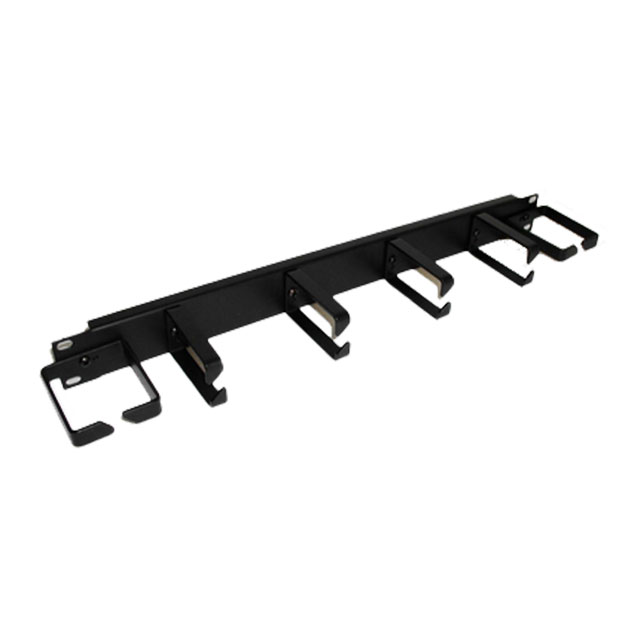

PANEL HORIZ.RING 19" 1U

Search across all available documentation for this part.

Active

Belden Inc.

PANEL HORIZ.RING 19" 1U

Technical Specifications

Parameters and characteristics for this part

Specification	9510-1901

Color	Black
For Use With/Related Products	Enclosures
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	1 in
Size / Dimension [y]	19 in
Size / Dimension [y]	482.6 mm
Type	Wire Manager

Part	Conductor Material	Voltage	Features	Wire Gauge	Number of Conductors	Jacket (Insulation) Material	Usage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Insulation	Shield Type	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Shield Coverage	Ratings	Color	For Use With/Related Products	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Belden Inc. 9510 060500	Copper Tinned	300 V	Drain Wire	24 AWG	20	Poly-Vinyl Chloride (PVC)	Computer	Chrome	0.368 in	9.35 mm	0.864 mm	0.034 in	-30 ░C	80 C	Multi-Pair	Poly-Vinyl Chloride (PVC)	Foil	500 '	152.4 m	32 AWG	7	Aluminum	100 %	UL Style 2464
Belden Inc. 9510-1901																									Black	Enclosures	Wire Manager	25.4 mm	19 in	482.6 mm	1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 138.51

General part information

Wire Manager 1.000" L x 19.000" W (25.40mm x 482.60mm) Black

Technical documentation and resources

No documents available
