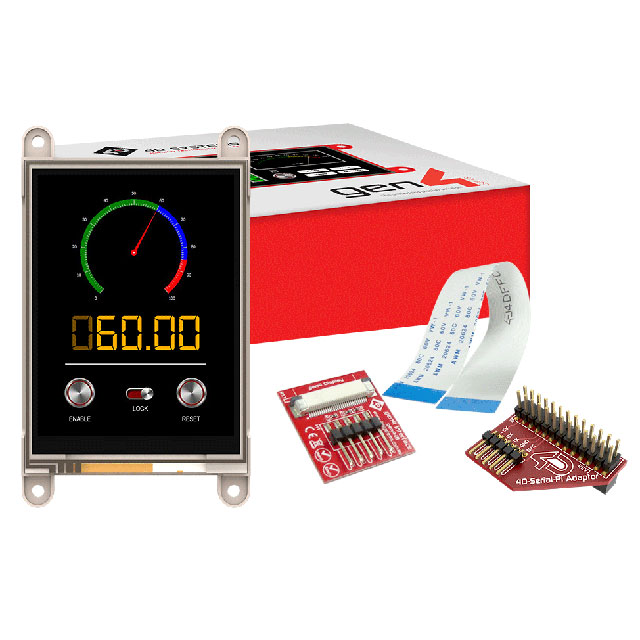

GEN4-ULCD-32DT-PI

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 3.2"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

GEN4-ULCD-32DT-PI

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 3.2"

Deep-Dive with AI

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 74.95

Description

General part information

GEN4-ULCD Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, TTL 3.2" (81.28mm) 240 x 320

Specification	GEN4-ULCD-32DT-PI	GEN4-ULCD Series

Backlight	LED - White	LED - White
Diagonal Screen Size	3.2 in	2.8 - 7 in
Diagonal Screen Size	81.28 mm	60.96 - 177.8 mm
Diagonal Screen Size	-	127 mm
Diagonal Screen Size	-	2.4 - 5 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.2 mm	0.15 - 0.2 mm
Dot Pitch [y]	0.2 mm	0.15 - 0.2 mm
Dot Pixels	-	WVGA
Dot Pixels [x]	240 pixels	240 - 800
Dot Pixels [y]	320	272 - 480
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	SPI, I2C, TTL	SPI, I2C, TTL, Parallel/Serial
Touchscreen	Resistive	Resistive, Capacitive
Viewing Area	-	36.7 - 154 mm
Viewing Area	-	43.2 mm
Viewing Area	-	57.6 mm
Viewing Area [y]	48.6 mm	48.6 - 85.92 mm
Viewing Area [z]	64.8 mm	64.8 - 73.4 mm

Part	Dot Pitch [x]	Dot Pitch [y]	Display Type	Display Mode	Interface	Graphics Color	Touchscreen	Backlight	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [x]	Viewing Area [custom]	Viewing Area [custom]	Dot Pixels	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]
4D Systems Pty Ltd GEN4-ULCD-43DT-AR	0.2 mm	0.2 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	272	480	109.22 mm	4.3 in	53.86 mm	95.04 mm
4D Systems Pty Ltd GEN4-ULCD-28D	0.18 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	320	240 pixels	71.12 mm	2.8 in			43.2 mm	57.6 mm
4D Systems Pty Ltd GEN4-ULCD-28DT-AR	0.18 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	320	240 pixels	71.12 mm	2.8 in			43.2 mm	57.6 mm
4D Systems Pty Ltd GEN4-ULCD-70DCT-CLB	0.19 mm	0.18 mm	TFT - Color	Transmissive	Parallel/Serial	Blue, Green, Red	Capacitive	LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA
4D Systems Pty Ltd GEN4-ULCD-70D	0.19 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA
4D Systems Pty Ltd GEN4-ULCD-43D	0.2 mm	0.2 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	272	480	109.22 mm	4.3 in	53.86 mm	95.04 mm
4D Systems Pty Ltd GEN4-ULCD-50D-PI			TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	480	800			64.8 mm	108 mm			WVGA	127 mm	5 in
4D Systems Pty Ltd GEN4-ULCD-70D-AR	0.19 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red		LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA
4D Systems Pty Ltd GEN4-ULCD-24DT-AR	0.15 mm	0.15 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	320	240 pixels	60.96 mm		49 mm	36.7 mm					2.4 in
4D Systems Pty Ltd GEN4-ULCD-70DT-AR	0.19 mm	0.18 mm	TFT - Color	Transmissive	I2C, SPI, TTL	Blue, Green, Red	Resistive	LED - White	480	800	177.8 mm	7 in	85.92 mm	154 mm			WVGA
