1-1376430-8

Active

TE Connectivity AMP Connectors

025/040 135POS CAP ASSY H TIN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

025/040 135POS CAP ASSY H TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1376430-8	1376430 Series

	-	-
Connector Type	Header	Header
Contact Length - Mating	0.217 in	0.217 in
Contact Length - Mating	5.5 mm	5.5 mm
Contact Length - Post	0.157 in	0.157 in
Contact Length - Post	4 mm	4 mm
Contact Shape	Rectangular	Rectangular
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Natural	Natural
Insulation Height	0.894 "	0.894 "
Insulation Height	22.71 mm	22.71 mm
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	135	135
Number of Positions Loaded	All	All
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch - Mating	3.2 mm	3.2 mm
Pitch - Mating	0.126 "	0.126 "
Row Spacing - Mating	0.098 in	0.098 in
Row Spacing - Mating	2.5 mm	2.5 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	12 V	12 V

CONNECTOR ASSY

Part	Termination	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Color	Connector Type	Voltage Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Style	Fastening Type	Contact Type
TE Connectivity AMP Connectors 1376430-7
TE Connectivity AMP Connectors 1-1376430-2
TE Connectivity AMP Connectors 1-1376430-8	Solder	0.098 in	2.5 mm	Shrouded - 4 Wall	Natural	Header	12 V	Rectangular	0.217 in	5.5 mm	UL94 HB	135	3.2 mm	0.126 "	Through Hole, Right Angle	0.157 in	4 mm	0.894 "	22.71 mm	All	-30 ░C	105 ░C	Board to Cable/Wire	Push-Pull	Male Pin
TE Connectivity AMP Connectors 3-1376430-0
TE Connectivity AMP Connectors 2-1376430-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

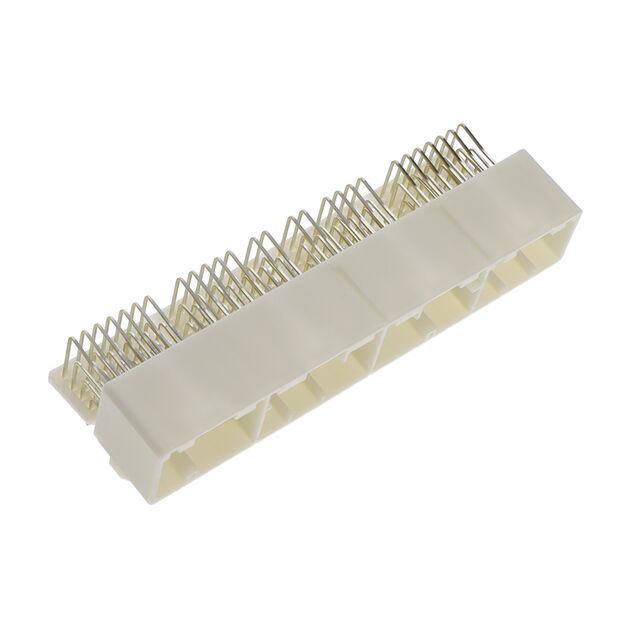

Connector Header Through Hole, Right Angle 135 position 0.126" (3.20mm)
