9-1377172-6

Active

TE Connectivity AMP Connectors

CONN RING CIRC 16-22AWG #8 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 16-22AWG #8 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9-1377172-6	1377172 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Features	Serrated Termination	Serrated Termination
Insulation	Insulated	Insulated
Insulation Diameter	-	3.56 mm
Insulation Diameter [Max] [diameter]	0.14 in	0.14 in
Insulation Diameter [Max] [diameter]	3.56 mm	3.56 mm
Insulation Diameter [Min] [diameter]	0.105 in	0.105 - 0.106 in
Insulation Diameter [Min] [diameter]	2.67 mm	2.67 - 2.69 mm
Length - Overall	21.74 mm	21.74 - 21.79 mm
Length - Overall	-	20.55 - 27.69 mm
Length - Overall	-	0.858 in
Length - Overall [x]	0.856 "	0.809 - 1.09 "
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	8 Stud	8 Stud
Stud/Tab Size	-	0.25 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	0.031 in	0.031 - 0.032 in
Thickness	0.79 mm	0.79 - 0.81 mm
Width - Outer Edges	-	8 mm
Width - Outer Edges	-	0.315 in
Width - Outer Edges [y]	7.92 mm	7.14 - 11.91 mm
Width - Outer Edges [y]	0.312 in	0.281 - 0.469 in
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	16 AWG	16 AWG

CONN RING CIRC 16-22AWG #8 CRIMP

Part	Insulation	Terminal Type	Features	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Contact Material	Stud/Tab Size	Material - Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Termination	Color	Mounting Type	Length - Overall	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Length - Overall	Width - Outer Edges	Width - Outer Edges	Insulation Diameter [Max] [diameter]
TE Connectivity AMP Connectors 9-1377172-6	Insulated	Circular	Serrated Termination	0.031 in	0.79 mm	22 AWG	16 AWG	7.92 mm	0.312 in	Tin	Copper	8 Stud	Poly-Vinyl Chloride (PVC)	0.14 in	0.105 in	3.56 mm	2.67 mm	Crimp	Red	Free Hanging (In-Line)	21.74 mm	0.856 "
TE Connectivity AMP Connectors 9-1377172-5	Insulated	Circular	Serrated Termination	0.031 in	0.79 mm	22 AWG	16 AWG	7.14 mm	0.281 in	Tin	Copper	8 Stud	Poly-Vinyl Chloride (PVC)	0.14 in	0.105 in	3.56 mm	2.67 mm	Crimp	Red	Free Hanging (In-Line)		0.809 in	20.55 mm
TE Connectivity AMP Connectors 9-1377172-9	Insulated	Circular	Serrated Termination	0.031 in	0.79 mm	22 AWG	16 AWG	11.91 mm	0.469 in	Tin	Copper		Poly-Vinyl Chloride (PVC)	0.14 in	0.105 in	3.56 mm	2.67 mm	Crimp	Red	Free Hanging (In-Line)		1.09 in	27.69 mm	0.25 Stud
TE Connectivity AMP Connectors 9-1377172-7	Insulated	Circular	Serrated Termination	0.032 in	0.81 mm	22 AWG	16 AWG			Tin	Copper	8 Stud	Poly-Vinyl Chloride (PVC)	0.14 in	0.106 in		2.69 mm	Crimp	Red	Free Hanging (In-Line)	21.79 mm				0.858 in	8 mm	0.315 in	3.56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

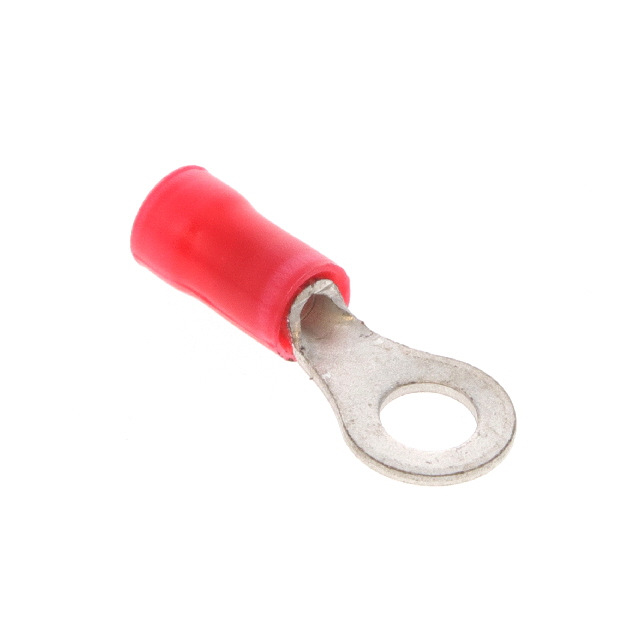

Ring Terminal Connector 8 Stud Circular 16-22 AWG Crimp
