Description
General part information
09180267005

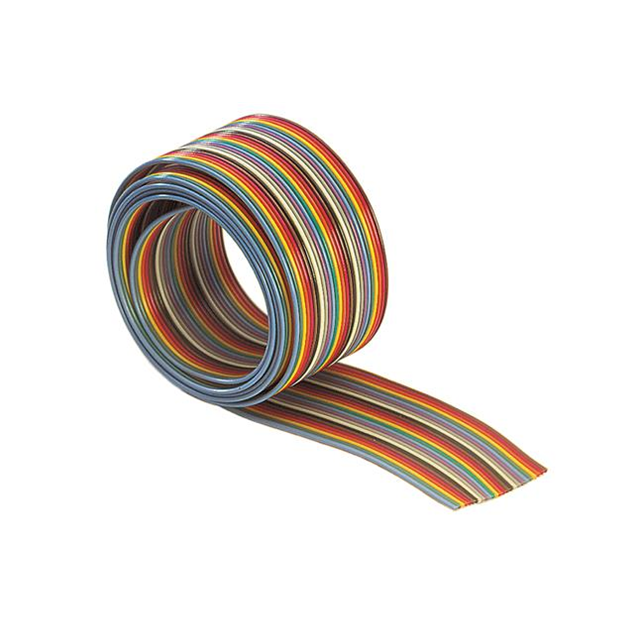

Flat Ribbon Cable Multiple 26 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09180267005 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Tinned, Copper |
| Conductor Strand | 7 Strands / 0.0035" |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 28 AWG |
| Current Rating | 2.1 A |
| First Conductor Mark | Red |
| Insulation Resistance | 100 MOhms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Multiple |
| Length | 100 ft |
| Number of Conductors | 26 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.05 in |
| Ratings | 2651, Style, UL |
| Ribbon Thickness | 0.037 in |
| Ribbon Width | 1.289 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
