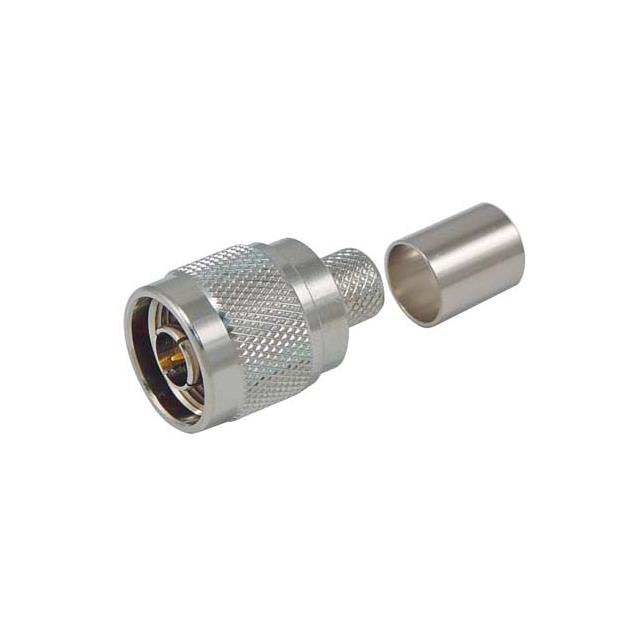

ANM-1420
ActivePasternack
CONN-MALE EZ CRIMP LMR400
ANM-1420
ActivePasternack
CONN-MALE EZ CRIMP LMR400
Description
General part information
ANM-1420
N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | ANM-1420 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LMR-400 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
