LCCA30539-FT1
ActivePasternack
SMA M TO N M USING LC085TB, 1 FT
LCCA30539-FT1
ActivePasternack
SMA M TO N M USING LC085TB, 1 FT
Description
General part information
LCCA30539-FT1

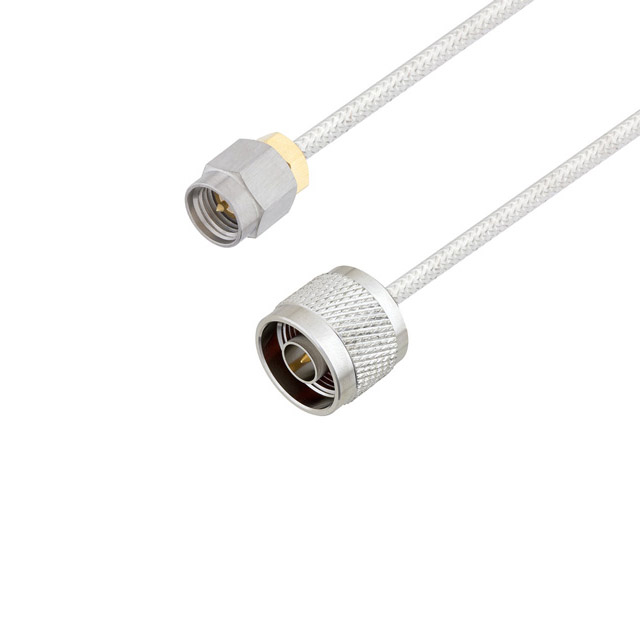

Cable Assembly Coaxial SMA to N-Type LC085TB 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30539-FT1 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
