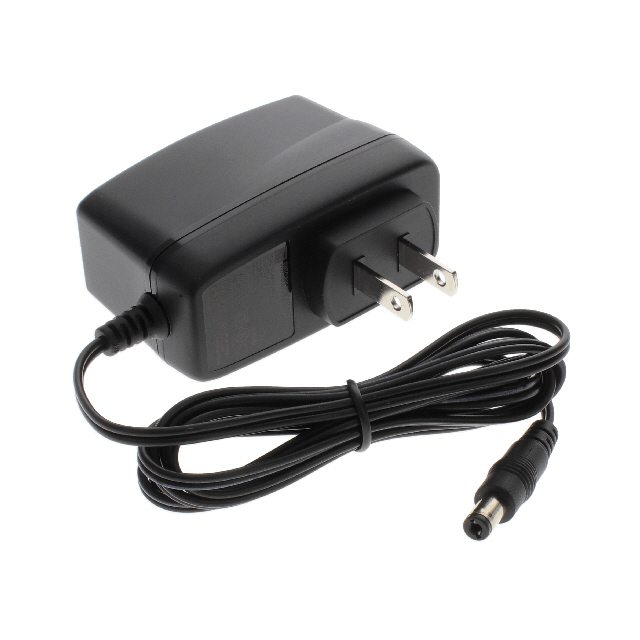

AA10A-050A-R

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA10A-050A-R	AA10A Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cULus	cULus
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	2 A	2 A
Efficiency	Level VI	Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	NEMA 1-15P	NEMA 1-15P
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	USB Micro, Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	10 W	10 W
Region Utilized	North America	North America
Size / Dimension [x]	71.2 mm	71.2 mm
Size / Dimension [x]	2.8 in	2.8 in
Size / Dimension [y]	34 mm	34 mm
Size / Dimension [y]	1.34 in	1.34 in
Size / Dimension [z]	52.5 mm	52.5 mm
Size / Dimension [z]	2.07 in	2.07 in
Standard Number	60950-1	60950-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	5 V	5 V

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Input Connector	Efficiency	Form	Standard Number	Region Utilized	Cord Length	Cord Length	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Applications	Output Connector	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector [x]	Polarization
Phihong USA AA10A-050A(M)-R	NEMA 1-15P	Level VI	Wall Mount (Class II)	60950-1	North America	1.5 m	59 in	5 V	90 VAC	264 VAC	cULus	10 W	52.5 mm	2.07 in	34 mm	71.2 mm	1.34 in	2.8 in	2 A	75 mW	ITE (Commercial)	USB Micro	Fixed Blade	40 °C	0 °C
Phihong USA AA10A-050A-R	NEMA 1-15P	Level VI	Wall Mount (Class II)	60950-1	North America	1.5 m	59 in	5 V	90 VAC	264 VAC	cULus	10 W	52.5 mm	2.07 in	34 mm	71.2 mm	1.34 in	2.8 in	2 A	75 mW	ITE (Commercial)	Barrel Plug	Fixed Blade	40 °C	0 °C	2.1 mm, 5.5 mm	9.5 mm	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
