CWR09MC335KB
ActiveKYOCERA AVX
CAP TANT 3.3UF 10% 35V 2214
CWR09MC335KB
ActiveKYOCERA AVX
CAP TANT 3.3UF 10% 35V 2214
Description
General part information
CWR09MC335KB

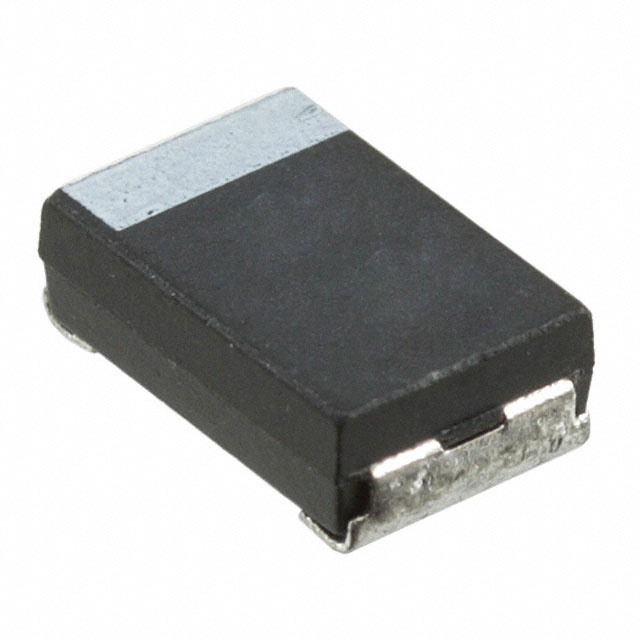

3.3 µF Molded Tantalum Capacitors 35 V 2214 (5634 Metric) 2.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR09MC335KB |
|---|---|
| Capacitance | 3.3 µF |
| ESR (Equivalent Series Resistance) | 2.5 Ohm |
| Failure Rate (Percent) | 0.1 % |
| Failure Rate Rating | B |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 0.085 in |
| Manufacturer Size Code | F |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2214 (5634 Metric) |
| Qualification | MIL-PRF-55365, 4 |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.135 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
